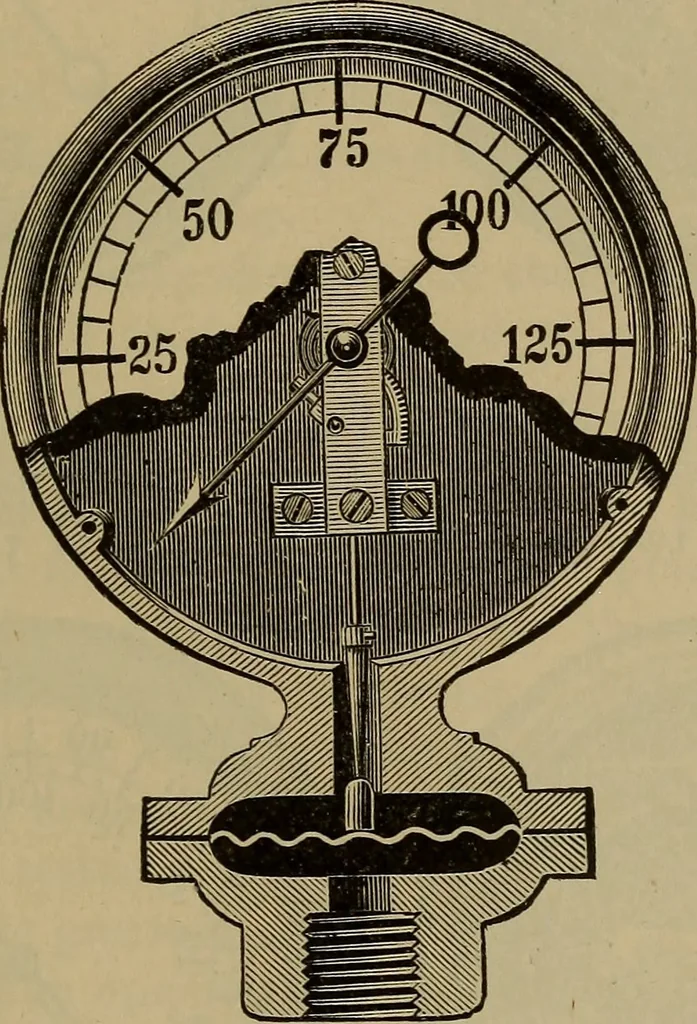

f a needle over a dial.Such spring may either be a flat disk or diagram, Fig. 472,or it may be a hollow brass or steel tube which is bent intoan arc of a circle, and the sides permitted to come togetherby this bending, so that the section of the tube is that of avery much flattened oval. When… … Fig. 472. straighten out by internal pressure, can be indicated by amultiplying gearing which shall cause an indicating-needle totraverse an arc. Fig. 473 shows the ordinary Bourdon gaugewith flattened tube availing of this principle. Pressures belowthat of the atmosphere can be observed by similar…
