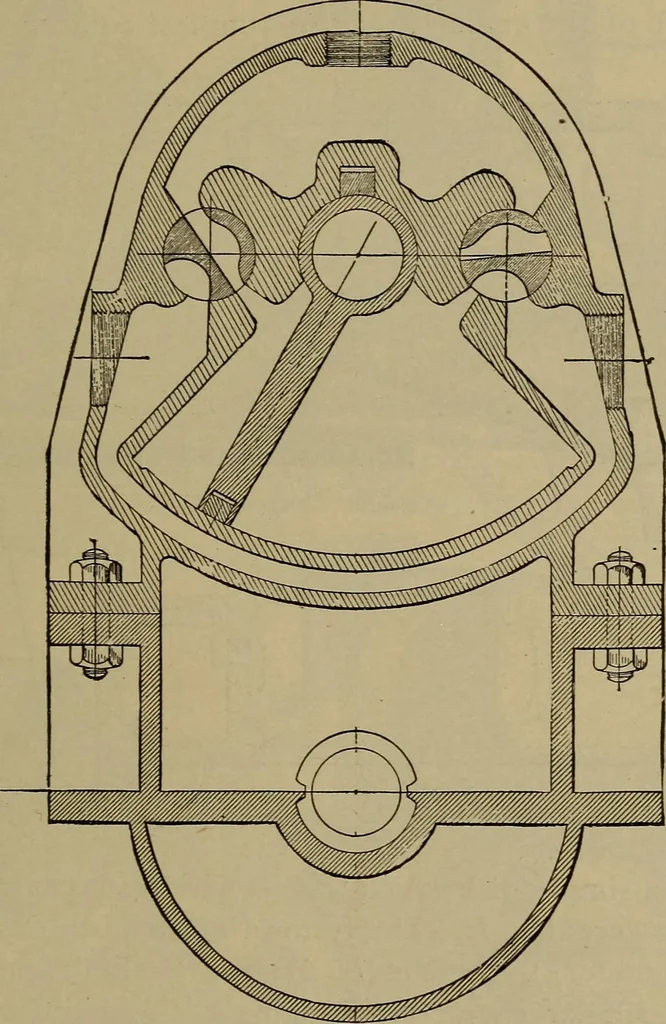

engine design and yet permits expansive working. What are called disk-engines are of two great types. Thefirst mi^ht properly be called a vibrating-piston engine or THE MECHANISM OF ENGINES. €>S sometimes a pendulum engine, such as is shown in Fig. 48.It will be seen that a flat flap or disk… … Fig. 48. ae beam-engine. This design was proposed many years age*by Captain Ericsson. A more usual form of engine in which a vibrating-pressureorgan forms a part is that presented in Fig. 49. This showsa disk B against wheh press six single-acting pistons which 66 MECHANICAL ENGINEERING OF POWER…
