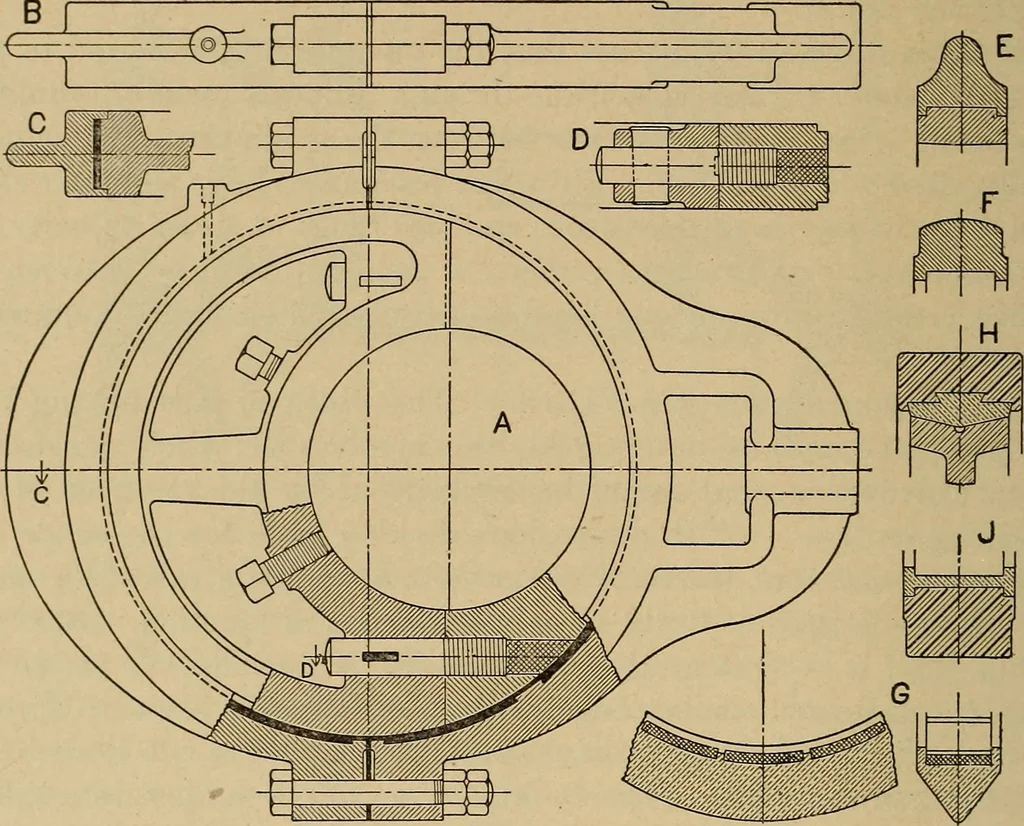

ricated, may be one of the most troublesome bearings inan engine. The bearing surface is nearly always cylindrical (an ex-ception being shown at H in Fig. 264), with recesses at the edges tomake room for collars on the strap. In cruder lines of construction,there is a bearing of cast iron on cast… … Fig. 264. — Eccentric and Strap for Corliss Engine in Fig. 3, to fit shaft in Fig. 215.Scale 1 to 14. Sketches E to J, various sections of the eccentric strap. In that figure, the round eccentric rod passes through a yoke whichprojects from the strap, and is fastened by two nuts, one in the…
