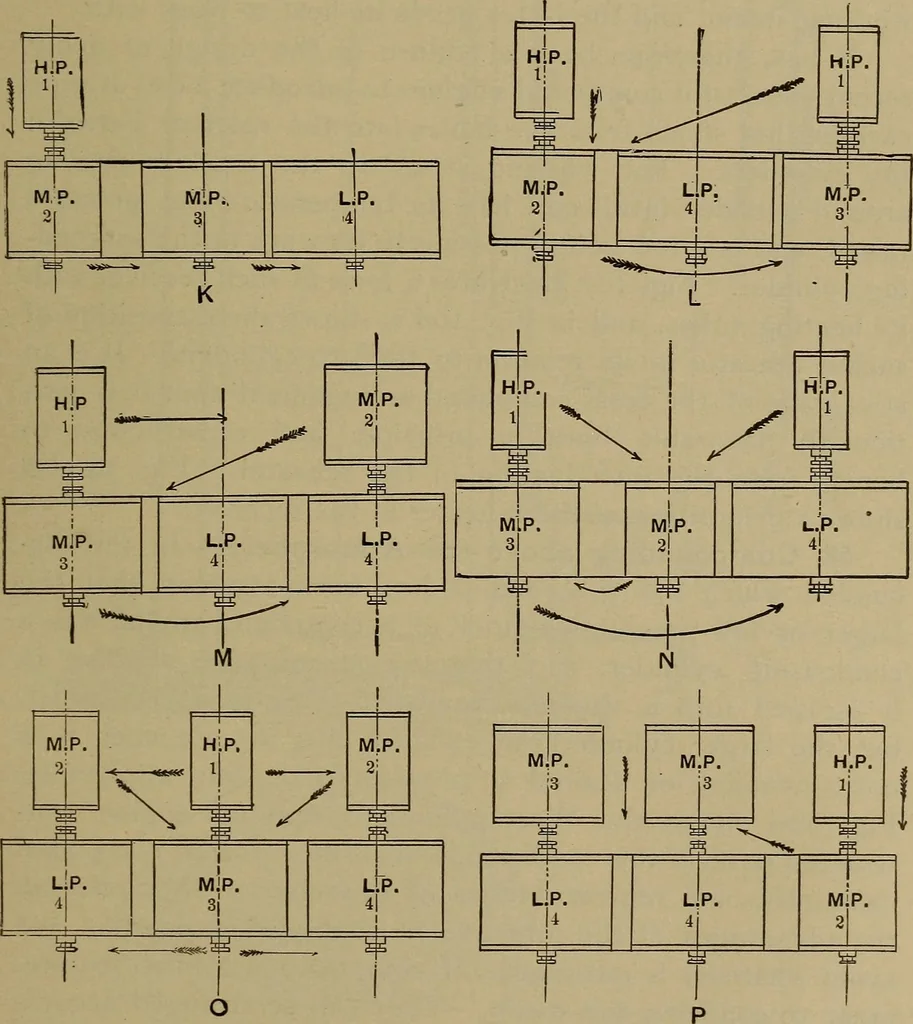

Fig. 105.—Grouping of Cylinders of Triple-expansion Engines. SIMPLE AND COMPOUND ENGINES. m H,P. / M.P.2| T MJP. L.P. .41 h:p. 1 mIp.3 MlP. 2 M- LP. 4 f … Fig. 106.—Grouping of Cylinders in Quadruple-expansion Engines. 134 MECHANICAL ENGINEERING OF POWER PLANTS. cylinder. Reheating would supply additional heat to com-pensate for that consumed without return in the high-pressurecylinder, and would vaporize the water of condensation fromdoing work…
