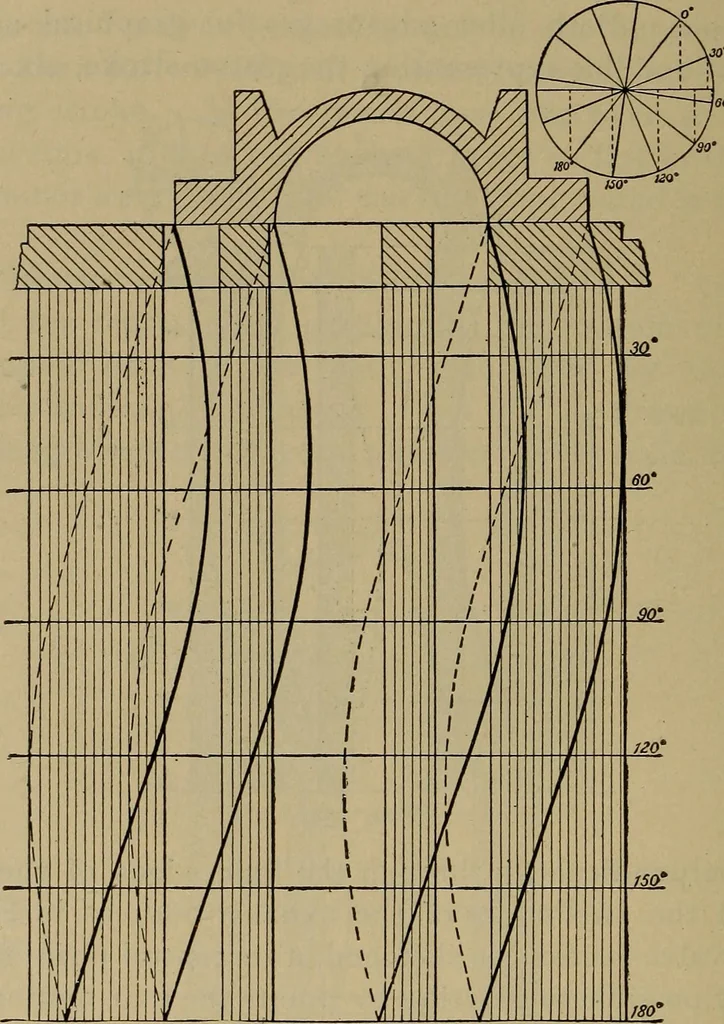

rresponding to the same angular positionof the valve-crank as is given for the piston of the engine bythe horizontal lines. Such a motion-curve gives the points 174 MECHANICAL ENGINEERING OF POWER PLANTS. of cut-off, exhaust-closure, release, and admission for easystudy. By varying the amount of… … Fig. 135 the effect cf increasing the throw of the valve, which is thechange introduced in Fig. 136; its conditions are otherwise asin Fig. 135. The effect is to make the cut-off later when thethrow is increased. These motion-curves can be experimen-tally drawn by the engine itself. If a board…
