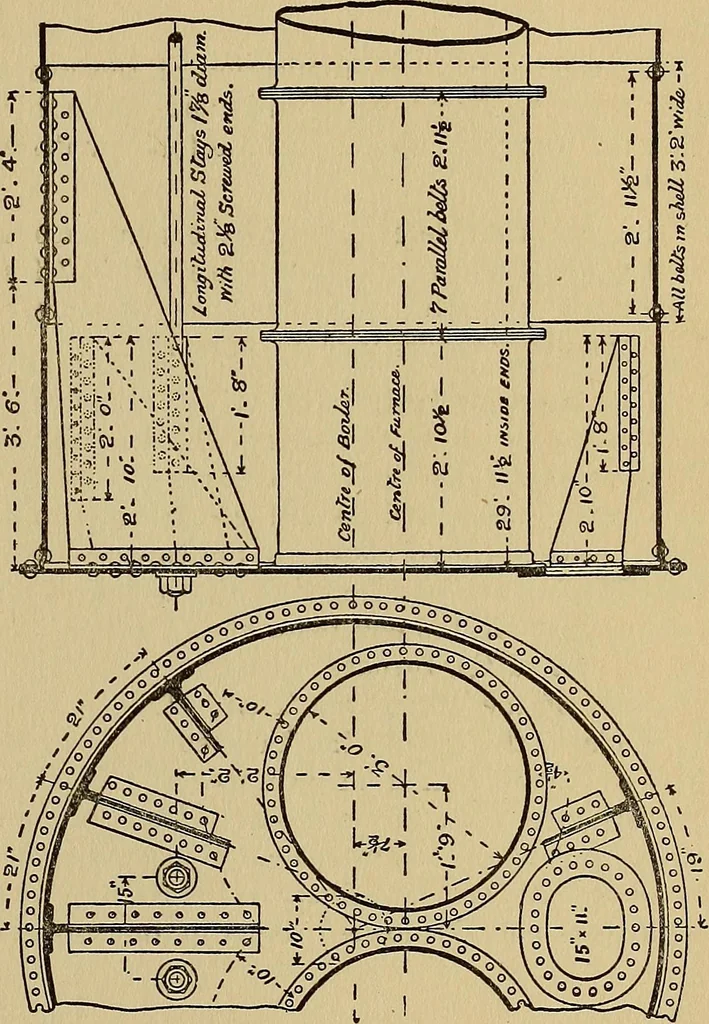

itsway to the chimney. There is a total heating surface of 290.5 squarefeet, and a grate area of 11.2 square feet. The working steam-pressure is 140 pounds persquare inch. This boiler, which is a 20 nominal horsepowerboiler, is capable of supplying steam to a com-pound engine having high and low… … Pig. 207—Qusset Stays. 126 MECHANICAL DRAWING in which a flat plate is used instead of a bar orrod. The most important application of the gussetstay is to be found in Cornish and Lancashireboilers for staying the flat ends to the cylindricalshell. The following description of the arrangementof the…
