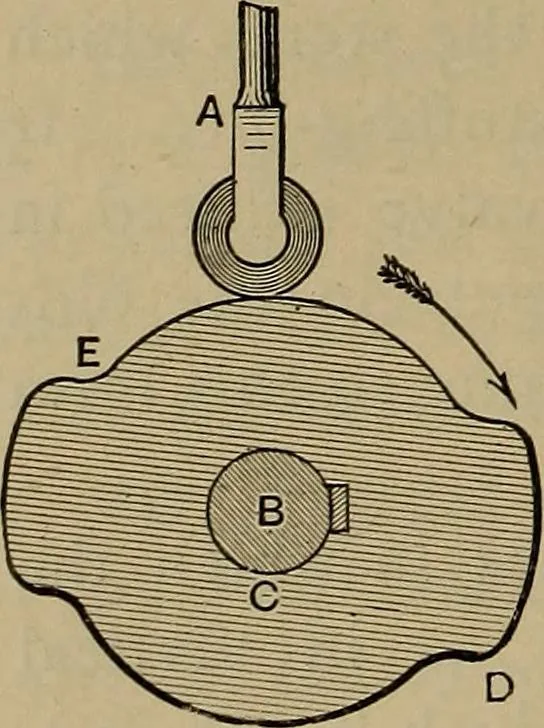

ears against a roller in con-tact with its exterior surface; such are calledoutside cams (Fig. 171). The roller is con-veniently mounted in the end of the valve-stem and can be in the plane of such valve-stem, or the cam may bear against the endof a pivoted lever which actuates the stem(Fig. 176).… … Fig. 171. CAM AND RELEASE VALVE-GEAR. 205 depended on, or else there must be a roller or yoke oppositeto the first one to bring the rod back with a motion similar
