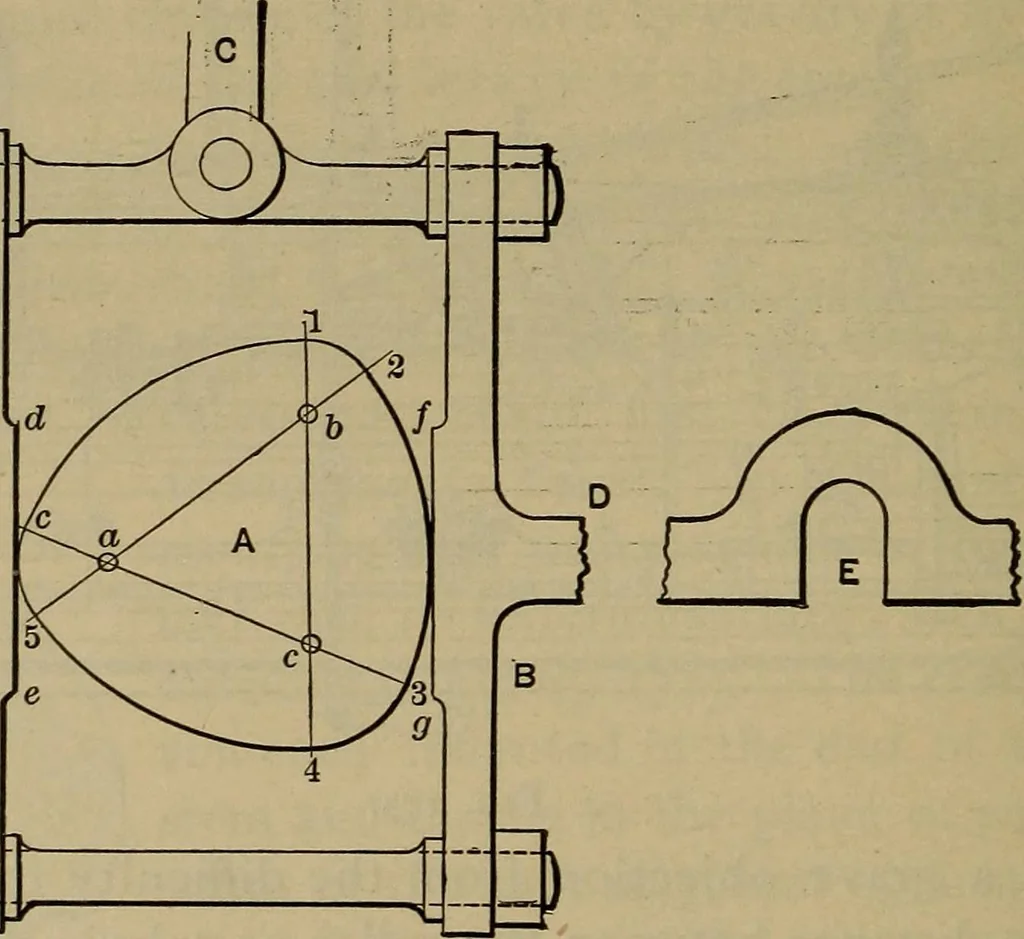

Fig. 174.and groove. This is called the box-cam system. The diffi-culty is that the inside surface of the groove drives theroller on the lifting stroke, and the outside surface of the C c … Fig. 175. groove drives the roller on the reverse stroke. Hence ateach reversal of motion the rotation of the roller mustbe instantly reversed, and the inertia of the roller resist-ing this reversal prevents perfect rolling contact at those CAM AND RELEASE VALVE-GEAR. 207 points of reversal, and…
