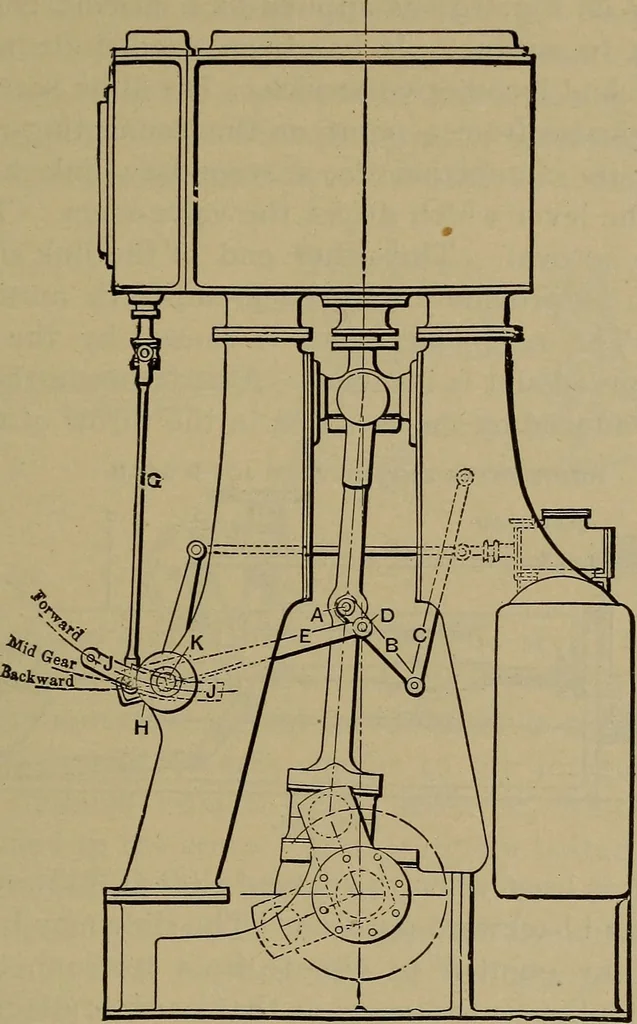

otions as transmit a motionto the valve-stem from an arm one end of which moves in aclosed curve and which has another point constrained to movein either an open or a closed curve by its connection with theframe through levers or slides. The closed curve describedby the first point is usually a… … Pig. 191. 1\\ _L <? f\ . D / r\ aC A \y B Fig. 192. 2$Q MECHANICAL ENGINEERING OF POWER PLANTS. gear, shown in Fig. 191 as applied to a marine engine, andin Fig. 192 in outline. It has been used quite a little inboth marine and locomotive service. It will be seen that themotion originates from a…
