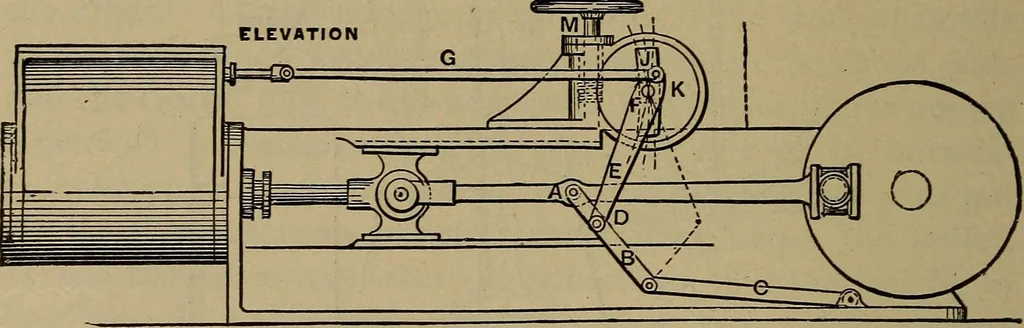

on originates from a point on the connecting-rod whichgives from its connection to a secondary link a reducedmotion to the lever which drives the valve-stem. The pointD describes an oval. The other end o£ the link slides in acurved path to provide for the back-and-forth motion of itsfirst end. The… … Fig. 193. stem, which is least when the curved slide is midway betweenits forward and backward position. The slide may be replacedby causing the point K to vibrate from its connection to alink whose radius is the same as that used in describing theslide {J in Fig. 195). The Joy valve-gear is made…
