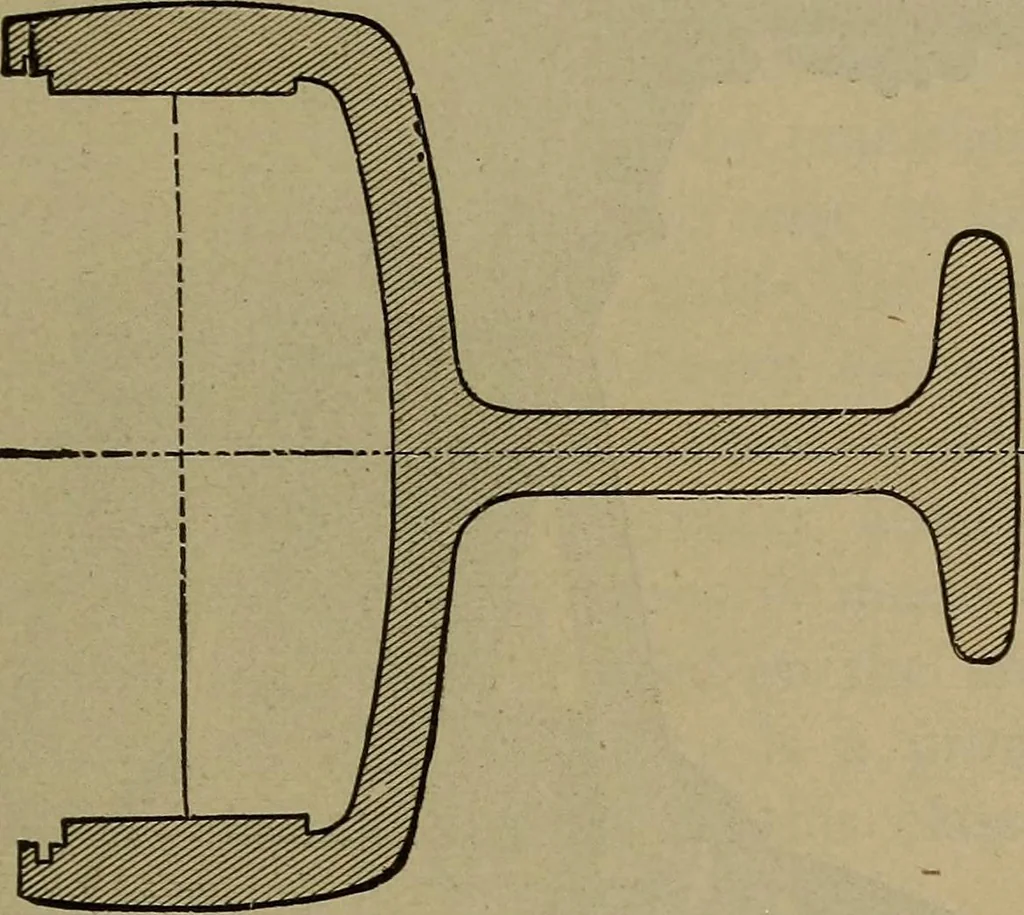

ENGINE FOUNDATIONS AND BED-PLATES 269 horizontal plane. Fig. 226 represents a standard bed-plateof this type, and Fig. 227 shows a section through the girder(see Fig. 182 also). A modification of the Corliss bed-plate is identified withthe name of Tangye of England, in which the cylinder over-hangs… … Fig. 227. mass around the guides, and the crank end is moulded witheasy curves to clear the space required for the motion of thecrank and connecting-rod. Fig. 228 may stand for this designas well as Figs. 92, 95, and others. The advantage of theTangye (sometimes also called the Porter) bed-plate is…
