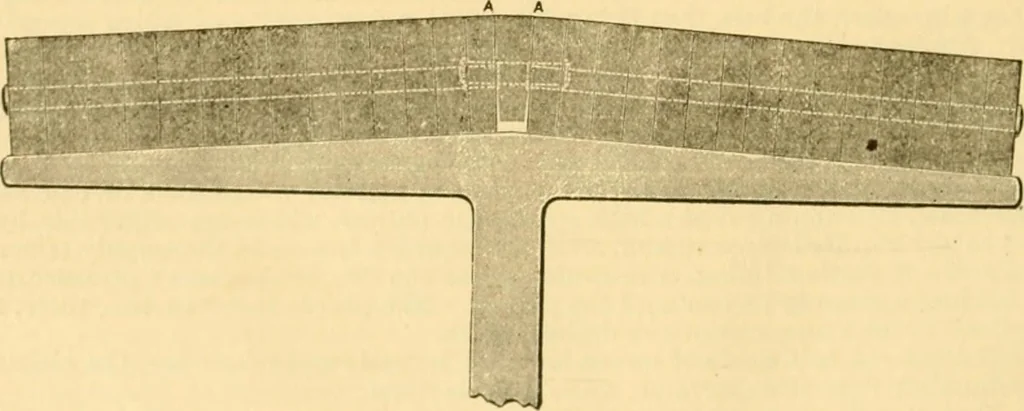

)elt in contact with a large {jroportion of its circumference. This largoarc of circumference in contact, and the weight of the belt, result in the largest possibleamount of power transmitted. Fig. 5 represents a cross-section of the Acme Link-belt, thedotted lines .showing the three bolts by which… … Fia. -Link-belt. These form the oentor hinge, giving flexibility and ndjustability to the belt. At the lines A Aare shown the heads of the two Ijolls, which extend from this hinge-joint to the outer edge ofthe l)elt. Iron-Link Beltn.—Detachable malleable iron links are largely used in…
