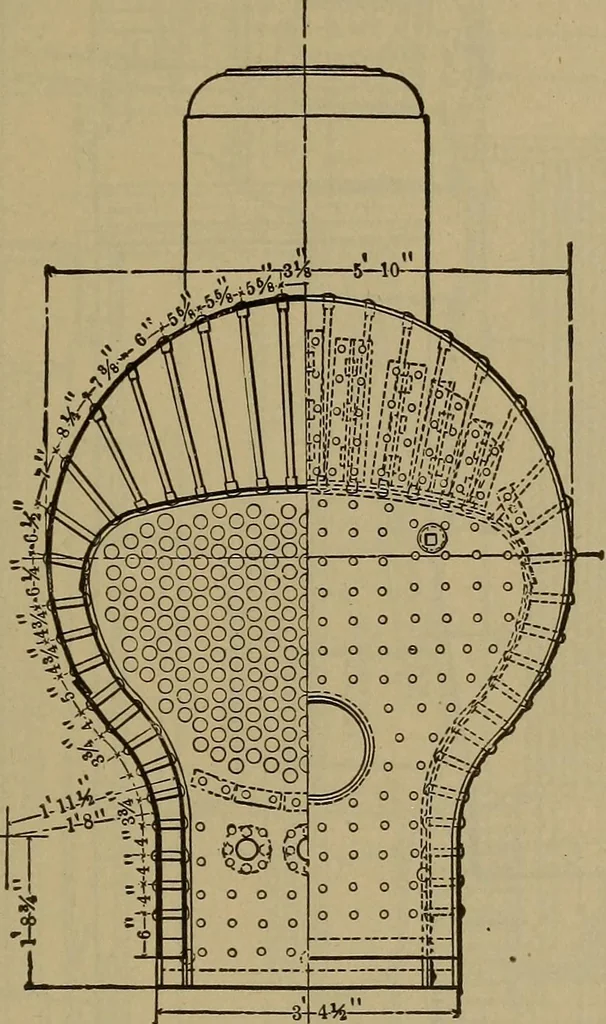

ter-legs were made narrow and parallel to the fire-box sheets,the two being stayed together by stay-bolts. The crown-sheet, of the same area as the grate, required to be very firmlystayed against collapse (par. 220 and Fig. 430) and steam-space TYPES OF BOILERS. 4*3 secured by enlarging the… … Fig. 411. formed in the back water-leg either by flanging the outer andinner sheets over each other and riveting them together, orelse by means of a forged iron ring, whose width is that ofthe water-leg between plates, so that the two plates areriveted together with the ring between them. The…
