Hutton, Frederick Remsen, 1853-1918 · New York, J. Wiley & sons; London, Chapman & Hall, limited · leaf 55

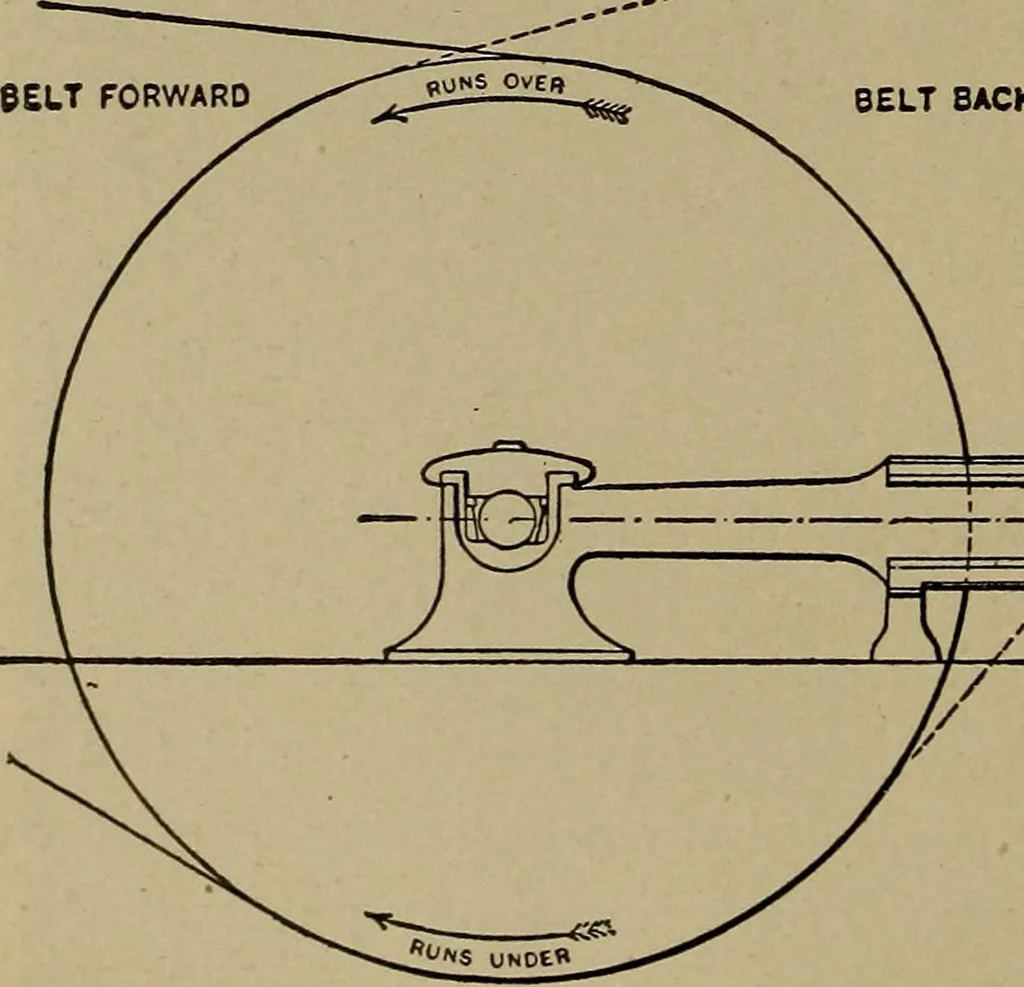

which is usually called the outboardbearing (a term borrowed from the practice prevalent whenpaddle-wheels were universal in marine engines and the bear-ing of the shaft was supported by an exterior guard over-hanging the water), yet very many designs, particularly for•engines to be directly… … -^SEE=^ES-E-t-^ Fig. 3. THE MECHANISM OF ENGINES. 15 ported by a bearing on each side of the bed-plate. Suchengines are called centre-crank engines. The typical marineengines are of this construction. Fig. i will be called a left-hand side-crank engine. An engine is said to throw over, when the…
Mechanical engineering · Steam power plants
