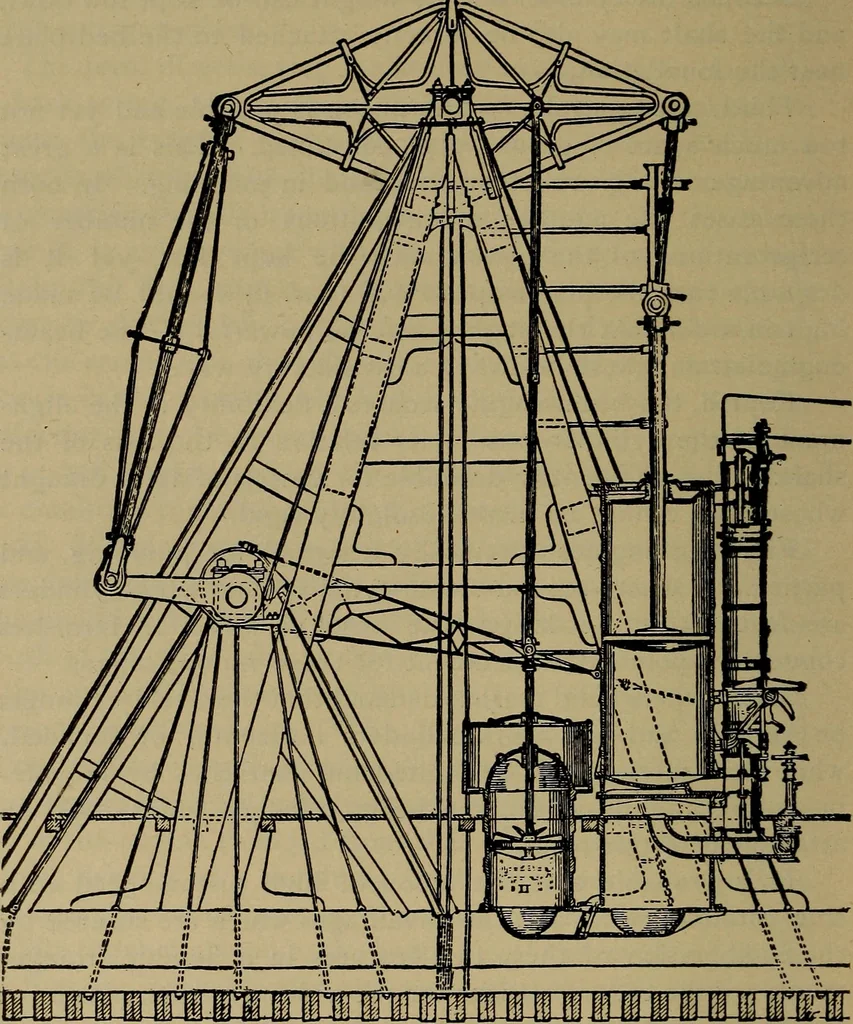

4. Structure of Beam-engines.—Fig. 30 illustrates atypical arrangement of an American river-boat beam-engineof the period 1850 to 1875. The type was practically fixedby the late Charles W. Copeland, and the sketch shows thebeam supported on a frame of wood which has been variously- 44 MECHANICAL… … Fig. 30. securing thereby greater rigidity and less weight than wasrequired in the wooden frames which they have displaced. The beam itself in early practice was a cast-iron girderwith the metal of the flanges so disposed as to secure the THE MECHANISM OF ENGINES. 45 greatest strength and stiffness…
