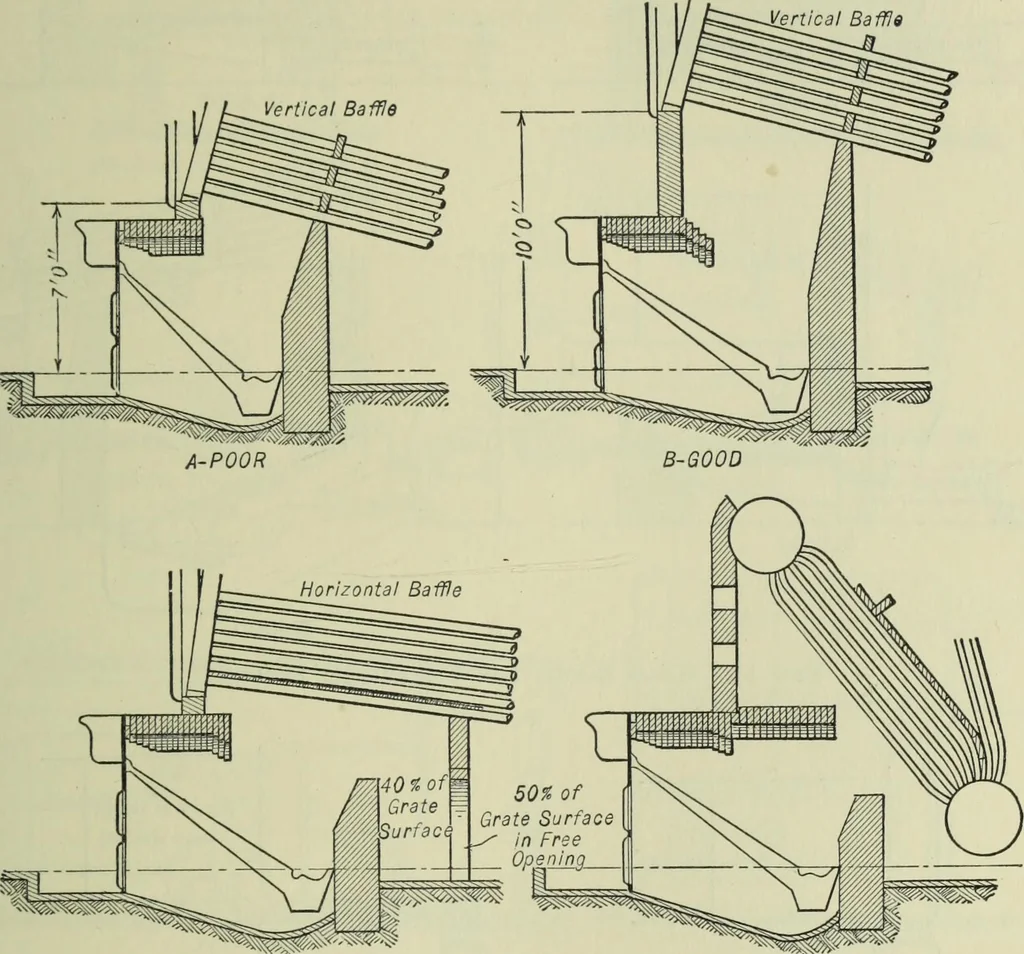

ers, or deflection arches, are used with this setting to breakup the current of gases. Where a free opening in such a setting does not go below 40 per centof the grate surface of the stoker, such construction is desirable. On a vertical boiler always getthe maximum extension possible within reason.… … C-G00D D-G00D Fig. 10. Front-Feed Stokers with Various Boilers. boiler, Fig. 11-B, and 7 ft. for a horizontally baffled boiler. In the case of the former the effortshould be to provide enough flame travel to minimize the danger of unconsumed volatile matterpassing into the bank of tubes. In the…
