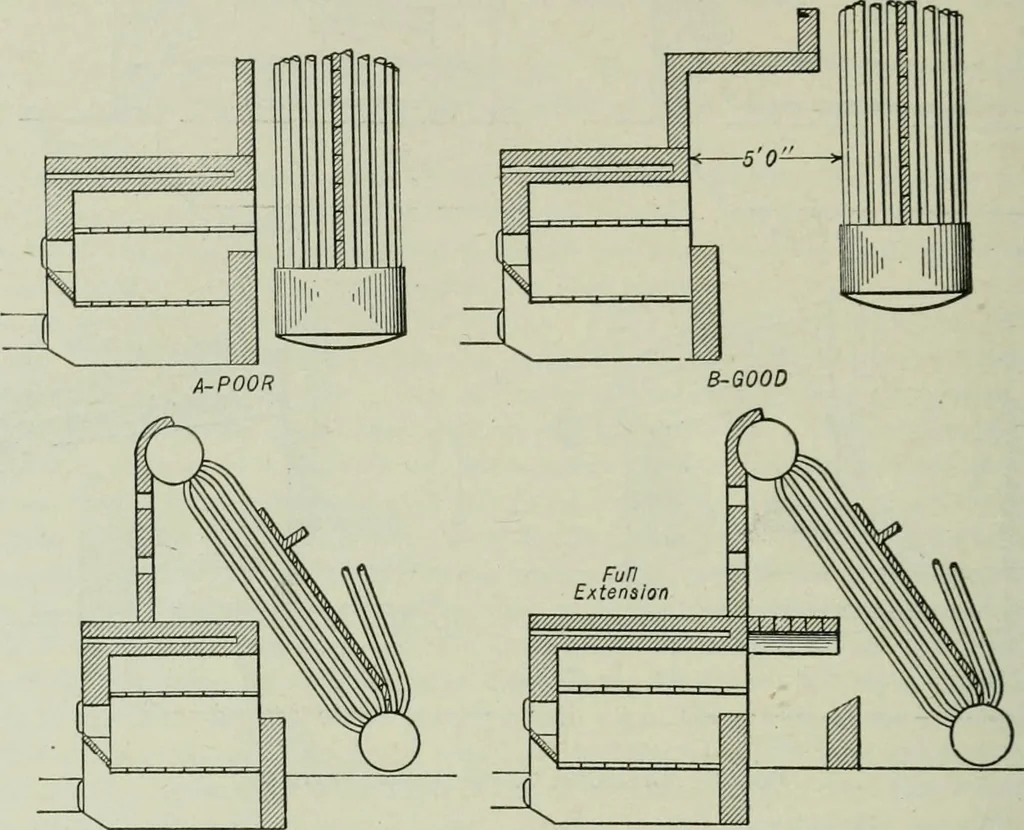

POWER PLANIVS AND REFRIGERATION Double-Inclined Stokers. For the double inclined type of stoker the short length of flame,discharging directly into the bank of tubes, is undesirable when the fire is being worked. Thistype of setting is frequently found installed in a 7-ft. head room, as in Fig.… … C-POOR D-GOOD Fig. 9. Double Inclined Stokers and Vertical Boilers. is blotter to set the boiler with a clearance of 10 ft. as in B, giving more opportunity for the gasesto complete their combustion. One of the safest arrangements is to provide a tile-roof settingwith an auxiliary bridge wall (Fig.…
