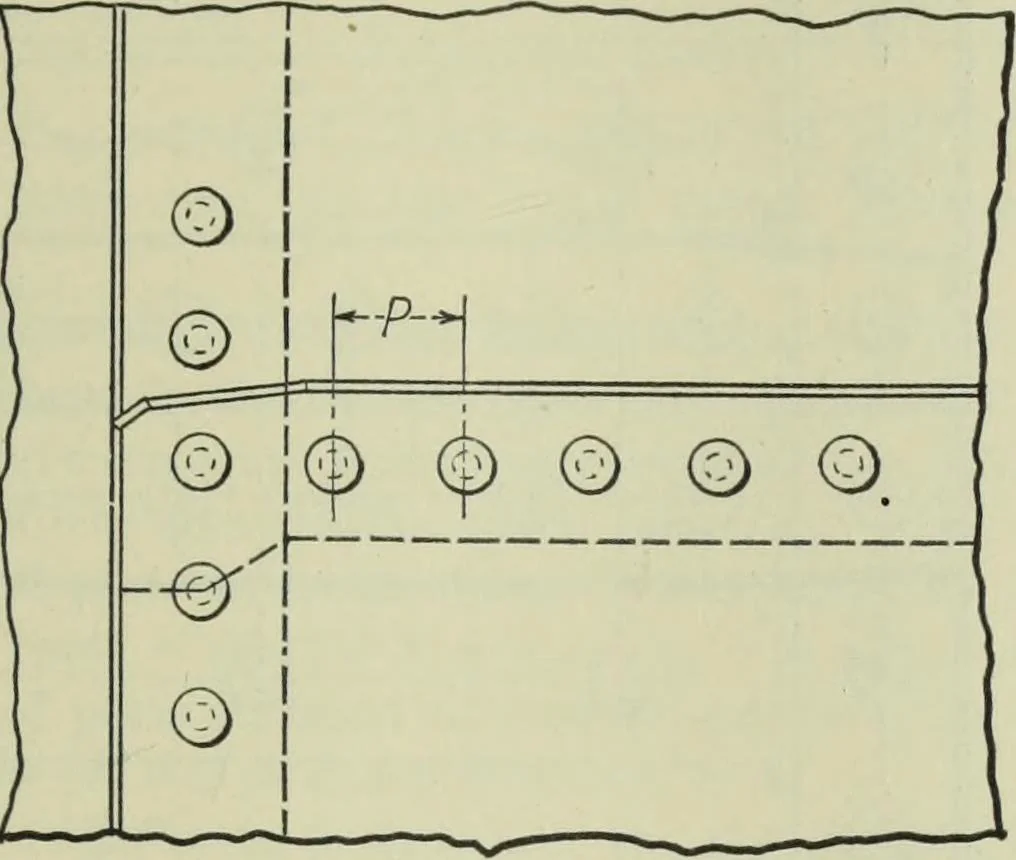

g strength of mild steel, as given in Par. 12 of these rules. n = number of rivets in single shear in a unit of length of joint. N = number of rivets in double shear in a unit of length of joint. >. Example. Lap joint, longitudinal or circumferential, single-riveted.A = strength of solid plate =… … Fig. 36. Lap Joint, Longitudinal or Circumferential, Single-Riveted. Divide B, C, or D (whichever is the least) by A, and the quotient will be the efficiency of a single-riveted lap joint as shown in Fig. 36. T.S. = 55,000 lb. t - M in. = 3.25 in. V = l^in. = 1.625 i n. d = H in- - 0.6875 in. a =…
