Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 159

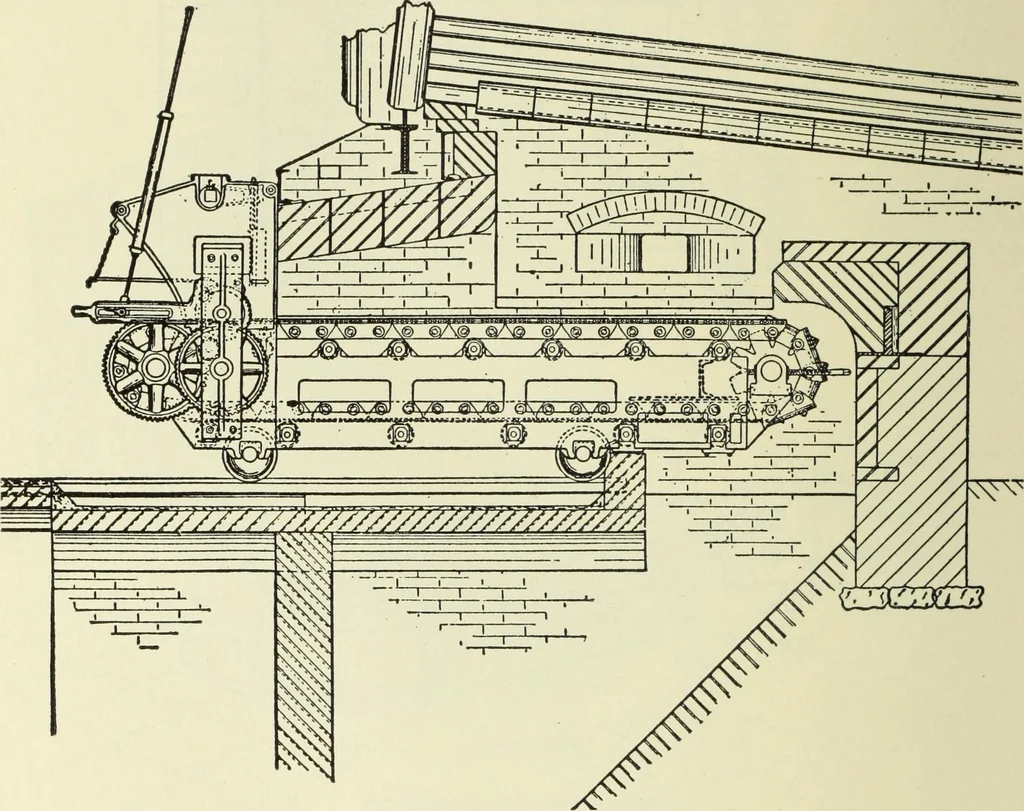

END VIEW. Fig. 4. The Taylor Stoker. 146 POWER PLANTS AND REFRIGERATION The Jones, American, Combustion Engineering Co. Type E, Taylor and Westinghouse are ex-amples of this class. Traveling or Chain Grates are of the class best illustrated by chain-grate stokers. As impliedby the name, these… … Fig. 5. The Green Chain-Grate Stoker. grates through suitable hoppers, is ignited under ignition arches, and is carried with the gratetoward the rear of the furnace as its combustion progresses. When operated properly, thecombustion is completed as the fire reaches the end of the grate and the…
Building · Heating · Ventilation
