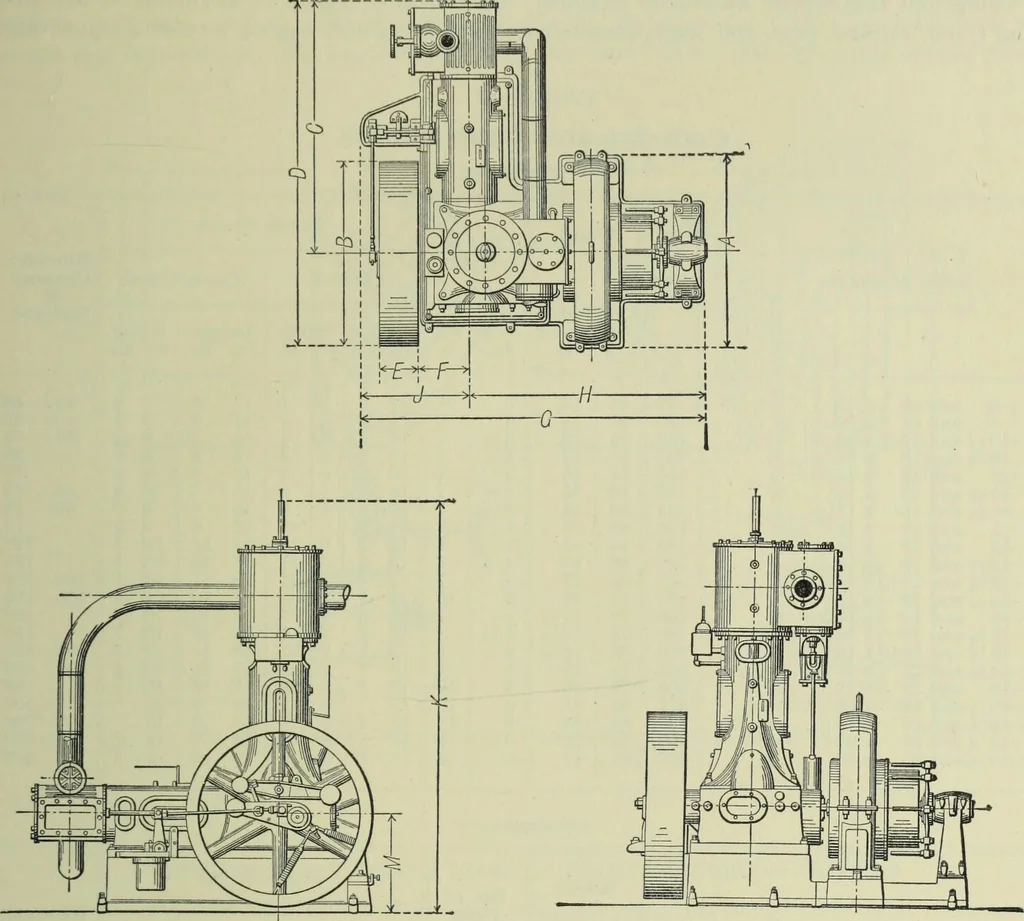

ad to full load. The economy of this type is somewhat betterthan the simple valve and about the same as the slow-speed Corliss. It is more often consideredfor units of 100 kw. capacity and over and when the cost of fuel is high. The first cost issomewhat greater than the single-valve engine, but… … Fig. 29. American-Ball Angle Compound Engine. TABLE 18 DIMENSIONS OF AMERICAN-BALL ANGLE COMPOUND ENGINES FOR DIRECT-CONNECTED SERVICE Shipping General Dimensions in Inches Weight Cylinder Rev.perMin. in Pounds fc. Floor Space Wheels Steamand Exht ^ and A X . jjj a. Stroke to tJ § •o Pipes Direct…
