Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 318

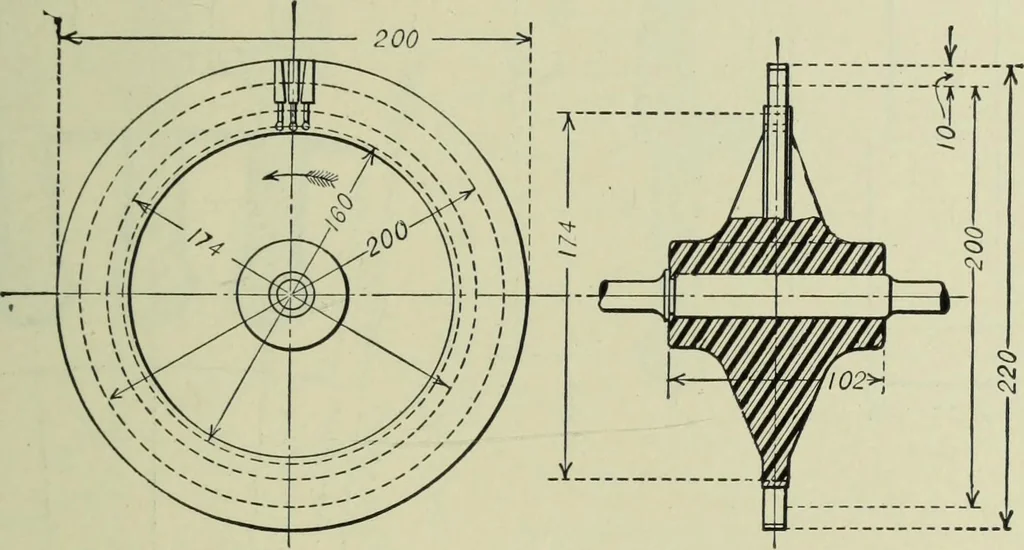

600 pm = 0.58 X 140 = 81.2 lb. per sq. in. absolute. Locate the initial condition of the steam at theintersection of the 140 lb. pressure line and the saturation curve. The heat content as read on the left-hand vertical scale is: ti = 1194. From the intersection on the saturation curve, above… … Fig. 7. Wheel Disc. until the intersection with a diagonal pressure line corresponding to p2 = 15.7Xi is found to be 0.878 and the heat content 1035. From the steam tables vmvm = 0.96 X 5.41 = 5.19. v2 = 0.878 X 25.22 = 22.2. wm = 224 V 1194 -V 1194 - 1035 = 2824. The velocities w, is reached. The…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
