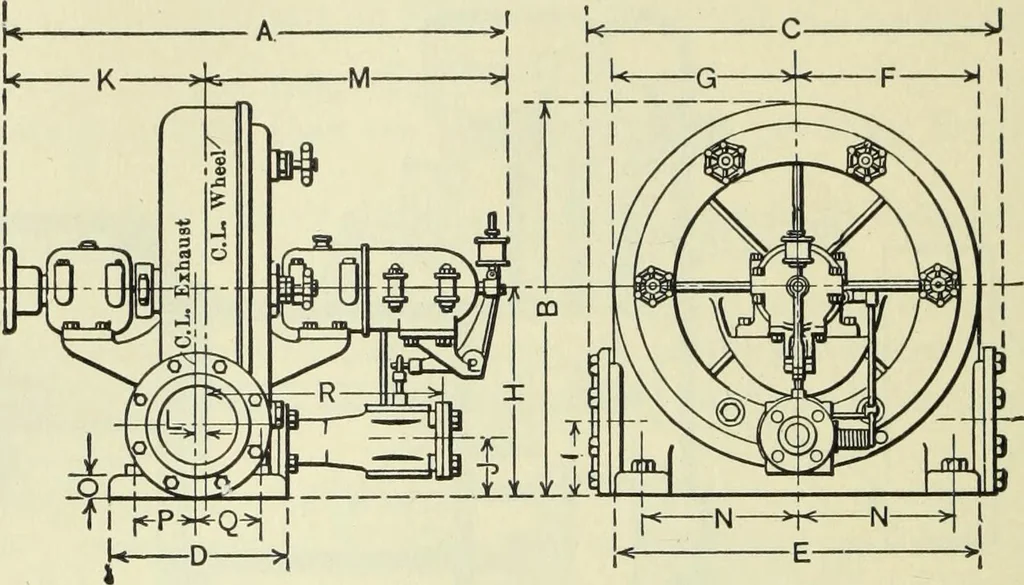

s a single set of nozzles in which the steam is expanded from the initial to the terminal 324 POWER PLANTS AND REFRIGERATION pressures. From these nozzles the steam is discharged against a row of moving buckets and is thenredirected by stationary guide vanes upon a second set of moving buckets. In… … Fig. 31. Dimension Drawing of Sturtevant Turbine. TABLE 5 DIMENSIONS OF STURTEVANT STEAM TURBINES Pipes JS (Max.) A B C D E F G H I J K L M N O P Q R 0pq Size 6 3 hi 03H § 72 w 4 fc A-5 m 30% 22 Vie 2314 10 34 19 54 10»/.« 10Vi« 12 4 4 3*4 1214 9/,fi 18^4 83/,fi m. 4 4 13% % B-5 2 6 34 28 % 30%…
