Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 381

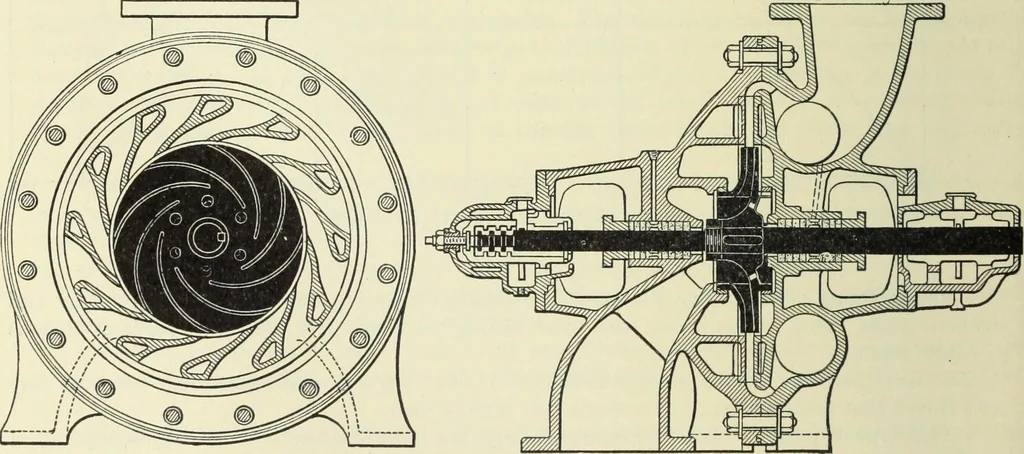

Pig. 16. Volute Type Pump. Discharge … END SECTIONAL VIEW MDE SECTIONAL VIEW Fig. 17. Turbine Type Pump—Single Stage. PUMPS 363 and reduce the loss of head in the pump casing to a minimum. A single runner is now used fortotal heads up to and including 150 ft. or 65 lb. per sq. in. pressure. The efficiency of this type,single stage,…
Building · Heating · Ventilation
