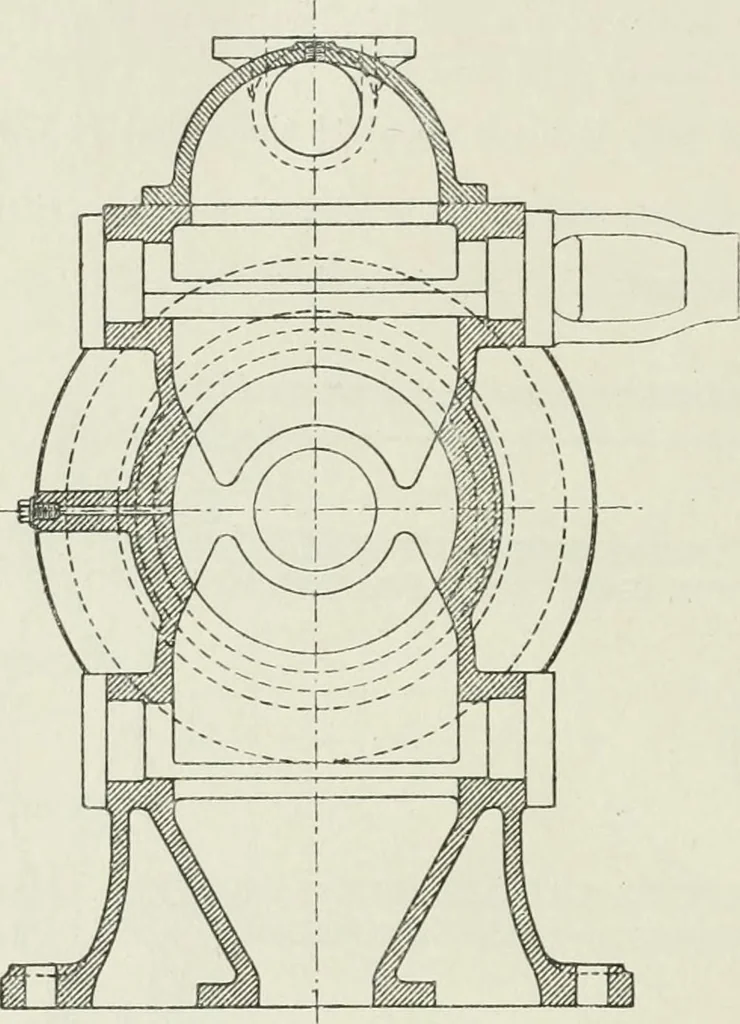

increase of load, and this wouldnecessarily result in the mean time in considerable falling off of speed.Details of Trip Motion (Fig. 394).—The trip arrangement consistsessentially of four pieces : (1) the valve-driving lever A, keyed directto the valve spindle C, and which carries a. hardened… … Fig. 393. THE CORLISS ENGIXE. 3+1 bracket, and which has a stud in the upper boss carrying (3) thehanging trip catch DD. The trip catch is arranged to fall in itsplace l»y gravity when the lever EE, on which it is mounted, movesinto its extreme forward (anti-clockwise) position, and on the…
