Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 421

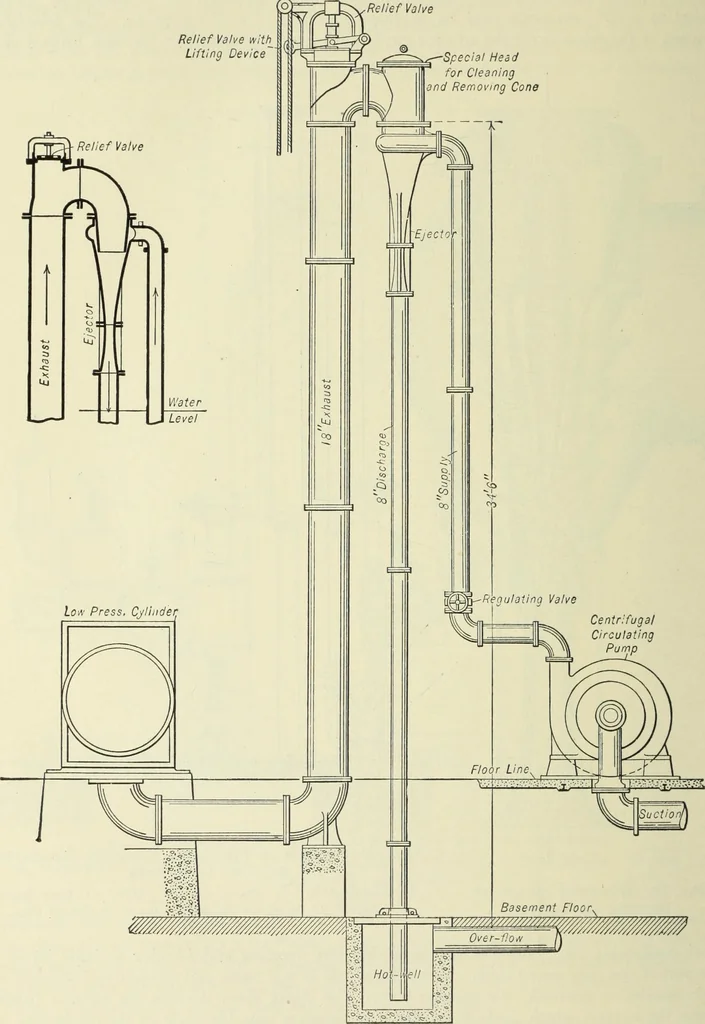

e, and consists of a series of con-centric nozzles of gradually diminishing bore. The steam flows through the annular passagesbetween the nozzles, which guide it, so that it impinges at suitable angle on the condensing jets.The multi-jet condensers are considerably shorter than the single-jet… … Figs. 17 and 18. Installation of Bulkley Barometric Condenser, STEAM CONDENSERS 401 A further advantage is gained by the form of the condensing tube, which in vertical section iaan inverted cone. In the upper part of the tube the steam is in contact with the coldest water,and condensation is…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
