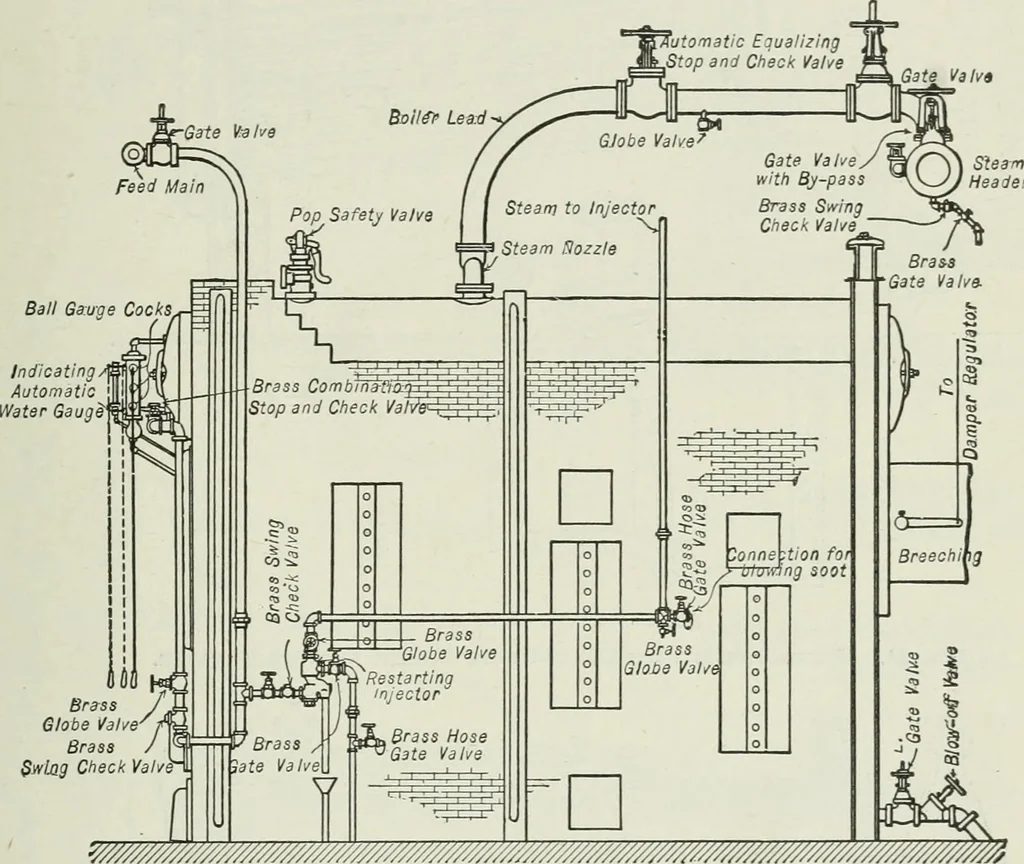

N 111 A water column connected to the front of the drum.A steam gage attached to the boiler front. Feed-water connections and valves. A flanged stop and check valve of heavy pattern isattached directly to each drumhead, closing automatically in case of a rupture in the feed line.The fixtures that… … Fig. 23. Fittings and Connections for Water-Tube Type Boiler. Flame bridge plates with necessary fastenings, and special fire-brick for Hning same. Bridge wall girder for hanging bridge wall with expansion sockets for side walls. A full set of access and cleaning doors through which all portions of…
