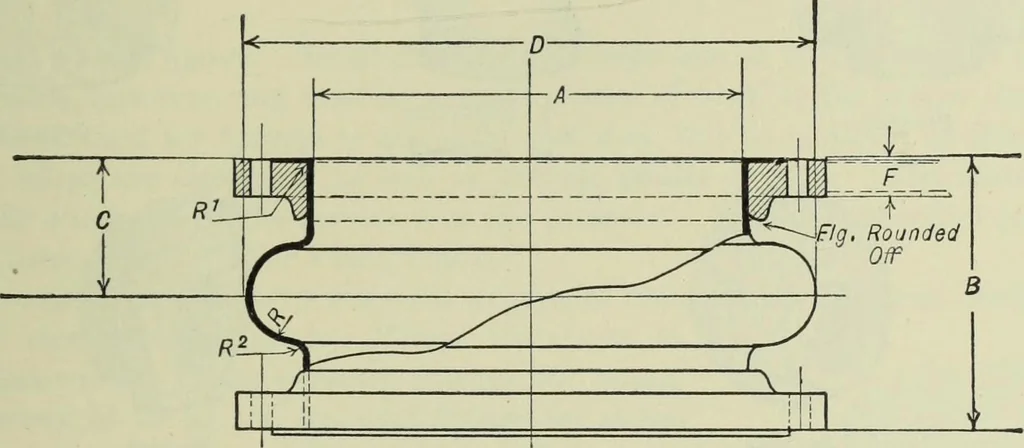

er Expansion Joints. The form of expansion joint shown in Table 6is suitable for exhaust-steam lines or for low-pressure water lines. These expansion joints areused almost universally on the connection between the exhaust outlet from a steam turbine andthe exhaust inlet of its condenser. The… … ASize,Inches B Face to Face, Inches CCenterto Face,Inches D Outside Diameter of Belt, Inches R Radius of Belt, Inches A Size,Inches B Face to Face, Inches CCenterto Face,Inches D Outside Diameter of Belt, Inches R Radius of Belt, Inches 4 8 4 8M 1H 24 14 7 31 2Y% 5 8 4 9 IVi 26 14 7 34 2ys 6 9 4^…
