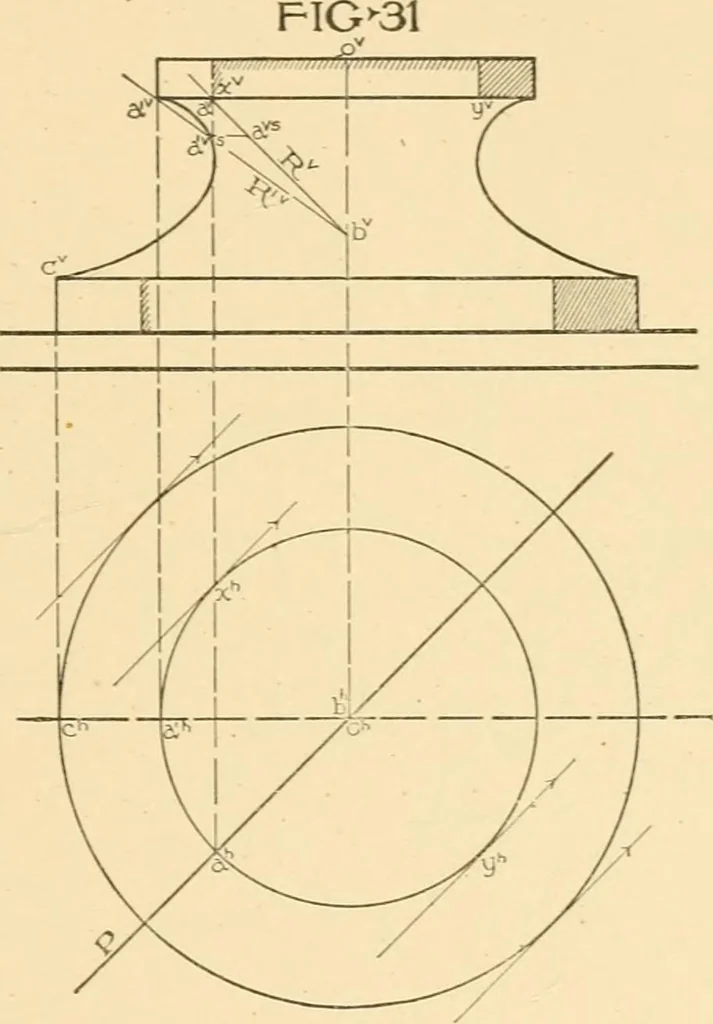

ow a^^ is determined, there-fore, as follows: The point <;/^, lying on thediagonal Vo^ is evidentlythe point in the shade lineMhich will cast the hijjhestpoint in the shadow, for, con-sidering points in the shadeline on either side of «^, itwiL become evident that therays through them must… … a line of intersection exactly like the profile «^c^. If we revolvethe plane P and its line of intersection about the axis ob untilit is parallel to Y, the line of intersection will then coincide withthis profile cCc, the point «^ having moved to the point a^. If, before revolving, we had drawn the…
