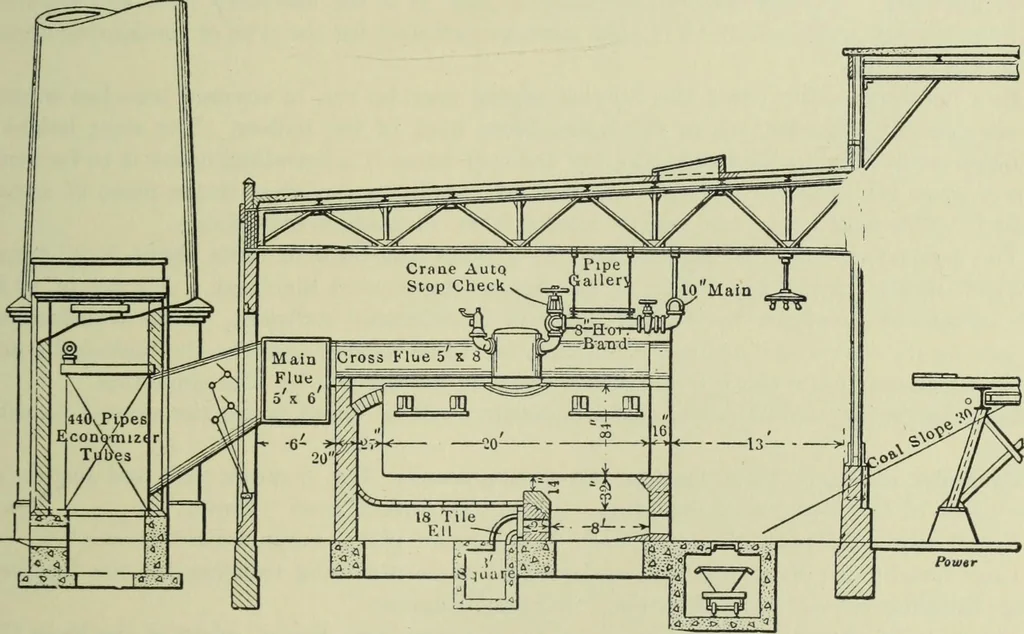

zontal water-tube boilers. If the flue or breeching is to be located between the boiler and wall then the space allowancewill be determined by the outside width of the flue employed plus sufficient distance, say 2 ft.,to allow for getting into the rear manhole in the boiler drum or drums of… … Fig. 4-a. Typical Section of Boiler Room for Small Manufacturing Plant. located at one end of the boiler room in line with the boilers. The space required betweenthe setting and the wall need not ordinarily exceed 12 to 18 ft. Approximately 3 ft. in theclear should be allowred around each pump and…
