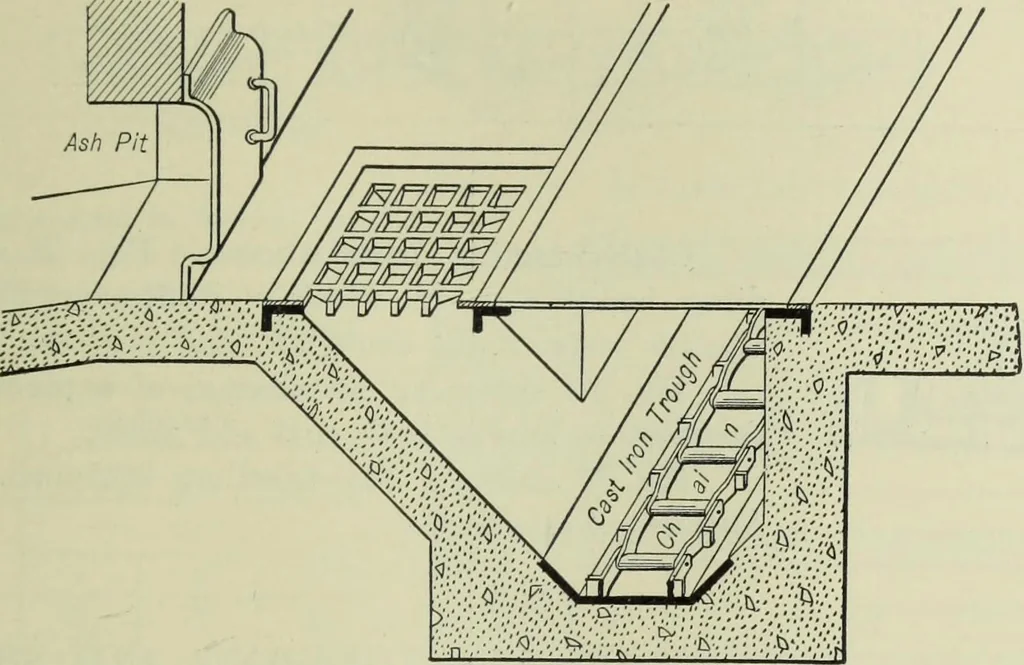

levated by means of a hydraulic cylinder if preferred. Steam Jet Ash Conveyors. A comparatively recent type of ash elevator and conveyor isconstructed of all cast-iron flanged pipe provided with expanding nozzle steam jets at theturns or ells. Fig. 22 shows a complete installation of the Green… … Fig. 19. Ash Conveyor. conveyor. An 8-inch conveyor of this type will handle 6 to 8 tons of ashes per hour with asteam consumption of 1,800 to 2,400 lb. high pressure steam per hour. The maintenance cost averages from one to one and one-half cents per ton of ashes handled.The cost of installation,…
