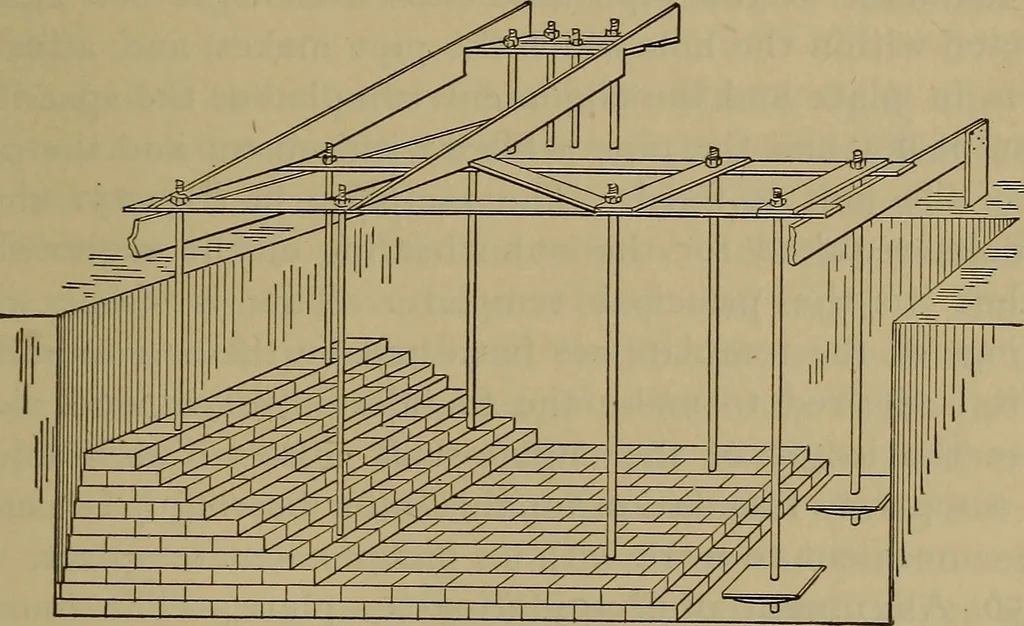

wn into the founda^tion, if not all the way to the bottom, in order that the upwardstrain upon them may be widely distributed in the founda-tion. The location of these bolts in the foundation must bedetermined by the holes in the bed-plate through which theyhave to pass. It will be seen by… … Fig. 231. and at such a height that when the foundation is completed,and the bed-plate placed upon it, the upper end of the boltsshall protrude through the holes in the bed-plate enough totake the nut which these upper ends are to carry. The method used to secure this object is shown in Fig.…
