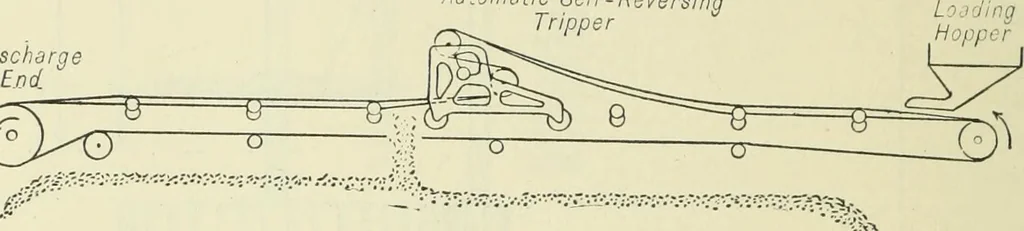

e 16 is 2% and will there-fore be used. Referring to Table 12, it will be seen that the horsepower transmitted by a single leatherbelt 4 wide, running over a 6 diam. pulley at 100 r.p.m., is 0.57 hp. for 180 deg. arc of con-tact. Assuming an arc of contact of 120 deg., the power transmitted is 0.57… … &^ Fig. 34. Typical Installation of Belt Conveyor with Reversing Traveling Tripper Belt conveyors are frequently used in boiler-house installations to convey the crushed coalfrom elevator head and distribute it into the overhead bins. TABLE 19 CAPACITIES OF BELT CONVEYORS IN TONS PER HOUR…
