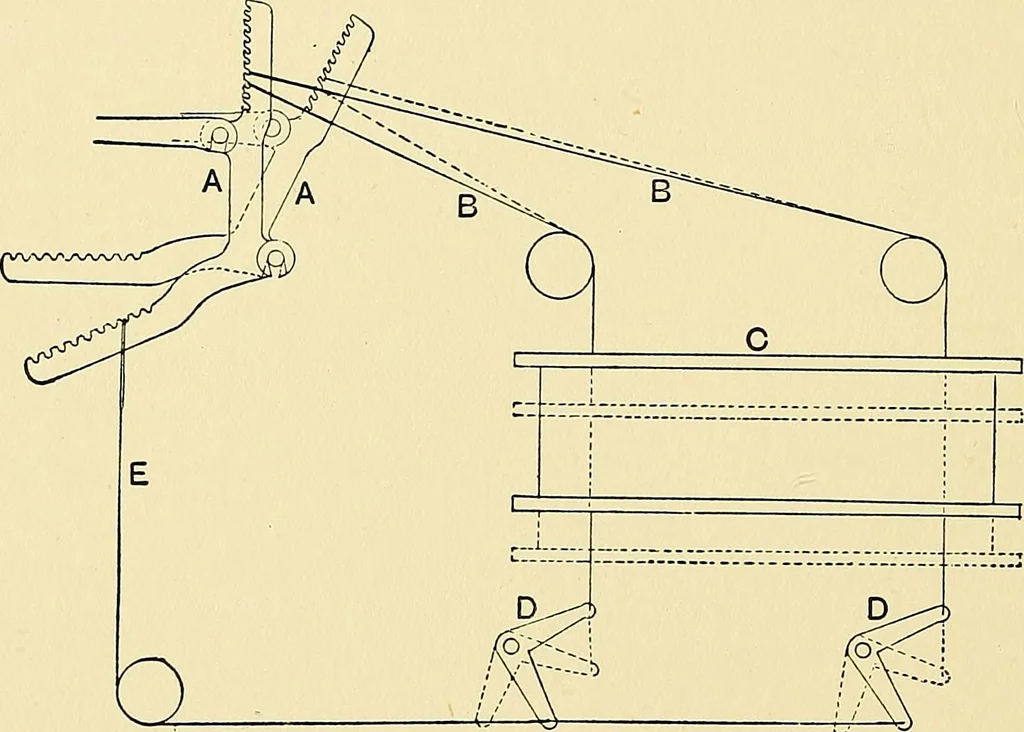

on a pair of pulleys;in the latter case, one pulley acts upon a pair of jacks. The cordsor wires from the harness jacks pass over the top pulleys on to thetop shafts of the healds; similarly, the wires from the horizontalarms of the harness jacks pass round the bottom pulley and into thelower jacks… … Fig. 283.—Shedding Mechanism of American DobbyA, A Jacks in forward and back positions, b, b, Harness cords, c, Heald. d, d, Elbow levers. E, Streamer. From this shaft the cylinders are driven. On the lower cylinder shafta pinion is fixed which gives motion to the pattern chain shaft. Thewhole…
