Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 186

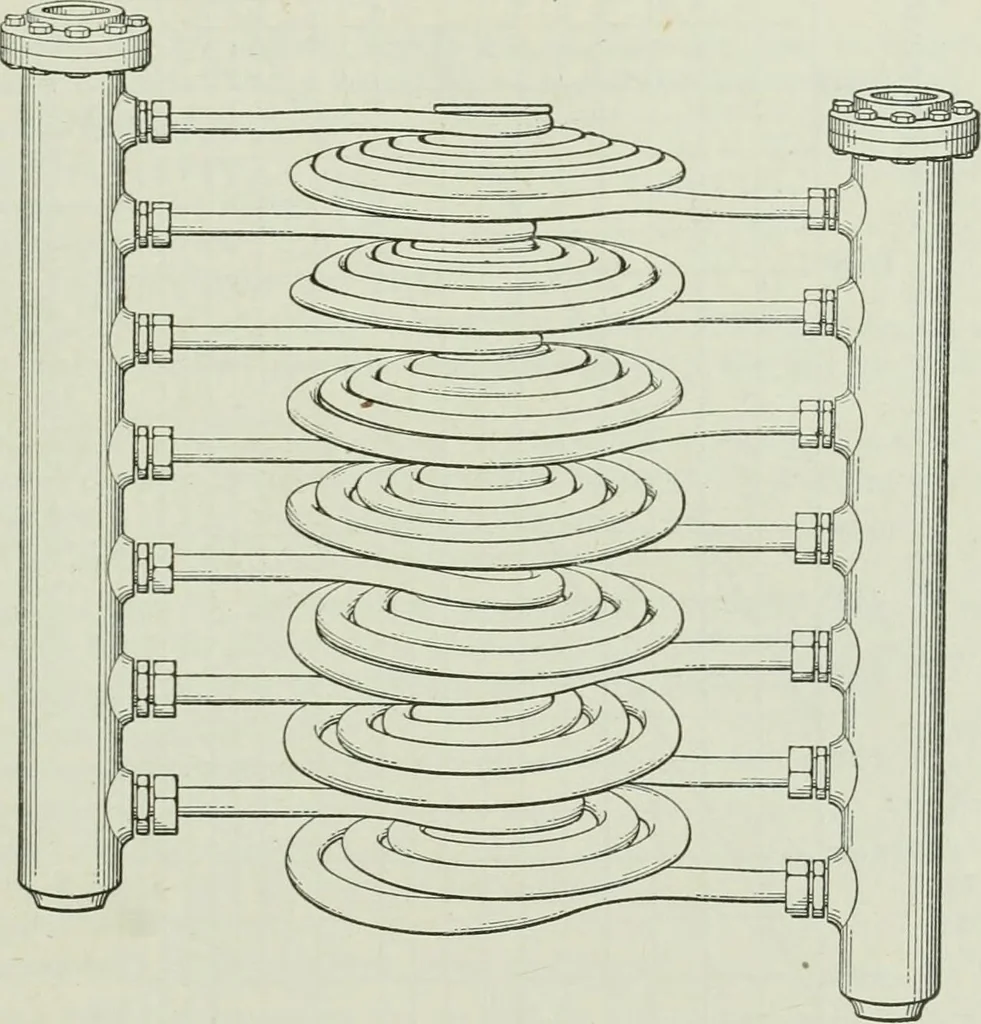

NS RUUD TANKS AND HEATERS Heating Capacity of Heater in Gallons per Hour Size of Tankin Gallons TankDimensions CirculatingPipe Hot Supply andCold Inlet 103 100200300425 5 X 228-6 X 248 x308 x36 22 2J^ 1J4 200 13^ 30J 2 4JJ 2 Note.—Tanks from 50% smaller to 50% larger than the heater capacity per… … Fig. 4. Heating Coils for Ruud Heater. Heat Transmission of Steam Coils. When steam coils are surrounded by water at a lowertemperature the coefficient of heat transmission becomes vastly greater than when they aresurrounded by air, due to the greater capacity of water for absorbing heat from the…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
