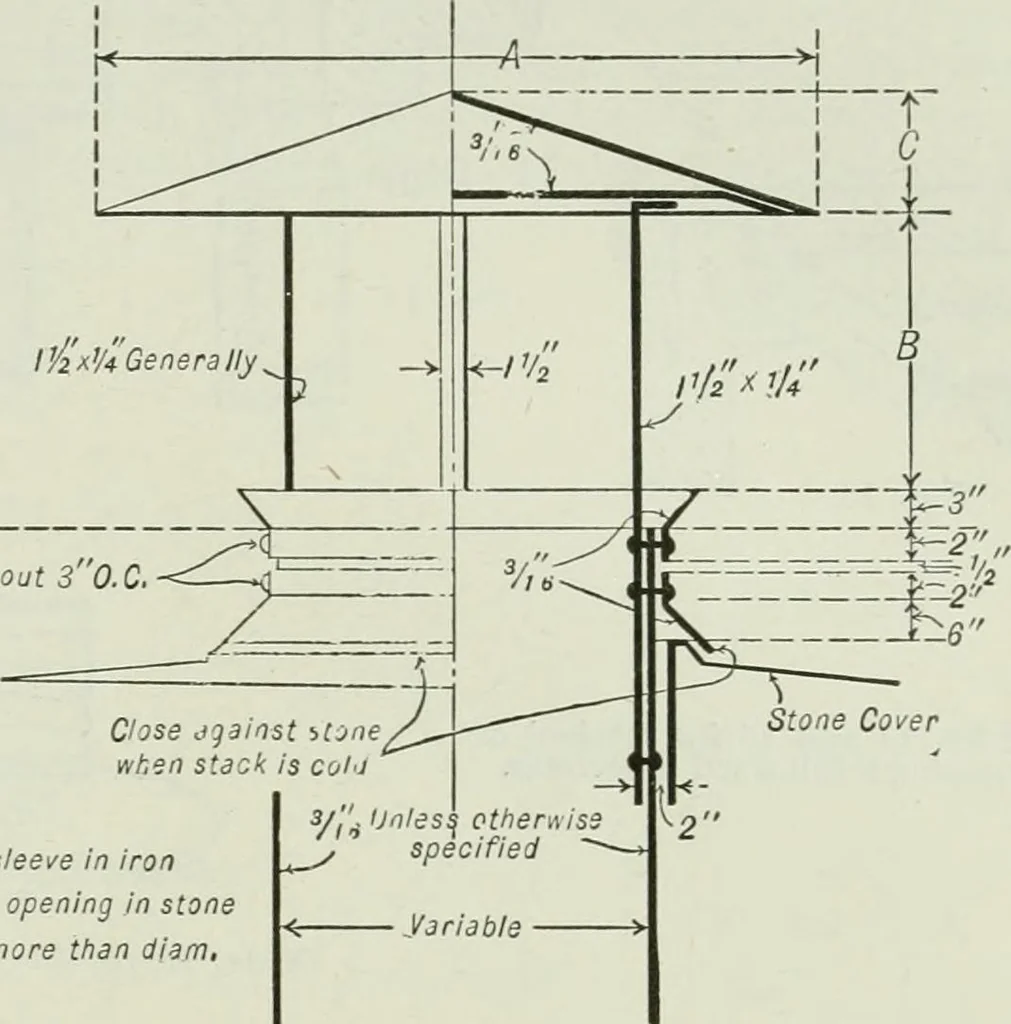

DRAFT AND CHIMNEYS FOR HEATING BOILERS 191 Brick Chimneys and Linings. Brick chimneys of large size may be hned in whole or inpart with fire-brick as shown in Figs. 7 to 11 which also show all details of construction. Fire day flue linings are used in the best practice for small and medium size of… … HALF ELEVATION-HALF SECTION DETAIL OF STACK HOOD No ScaleA » / /^diam, of stack plus 6B =. 3/, C^Veto/gOf A-Generally Q Fig. 12. Steel Chimney Top. a smooth continuous channel for the passage of the gases. The commercial sizes, weights, etc.,will be found in Table 3. Oiher linings of ca^it iron or…
