Architectural iron and steel, and its application in the construction of buildings ... specifications of ironwork ... tables selected expressly for this work ... by Wm. H. Birkmire (1905)
Birkmire, Wm. H. (William Harvey), 1860-1924 · New York, J. Wiley · leaf 127

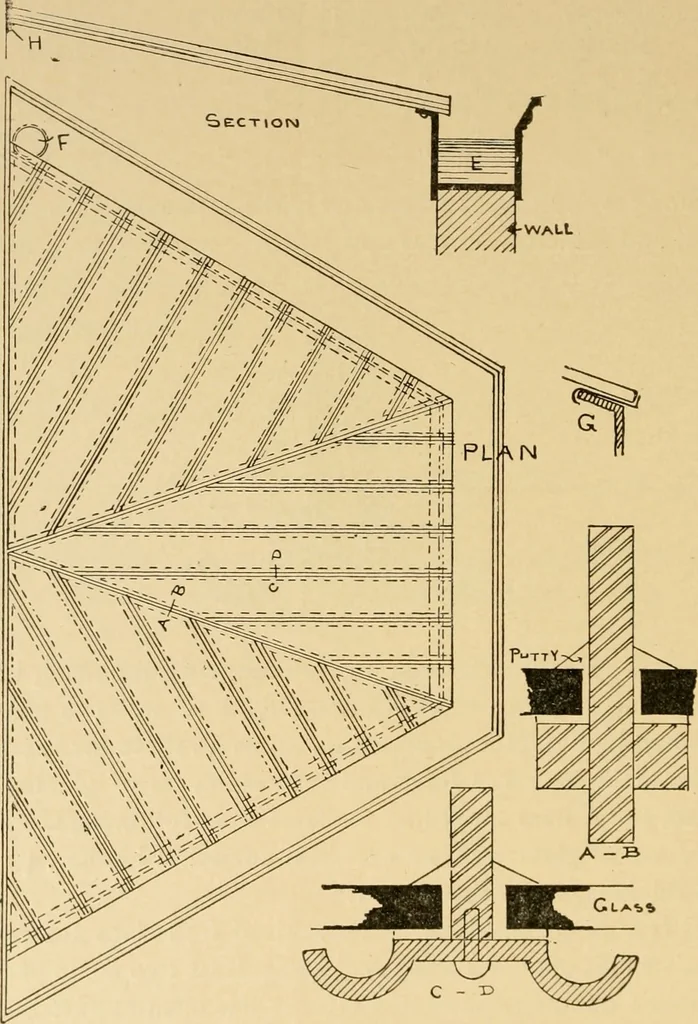

t should always receive at least two coats of paint—applied one or two months after it has been exposed, as the io8 ARCHITECTURAL IRON AND STEEL. paint adheres much better after the gloss is off, in the samemanner as with tin roofs. The best kind of paint to use is theoxide of zinc or of lead.… … FLOOR LIGHTS AND SKYLIGHTS. 109 165. Hip Skylight—is made of wrought-iron bars for rafters(section C—D in plate opposite), with cast-iron condensationgutter riveted to bottom for support of glass. In this case theglass is \ inch thick by 12 inches wide by 60 inches long. Inconsidering the width and…
Building, Iron and steel
