Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 214

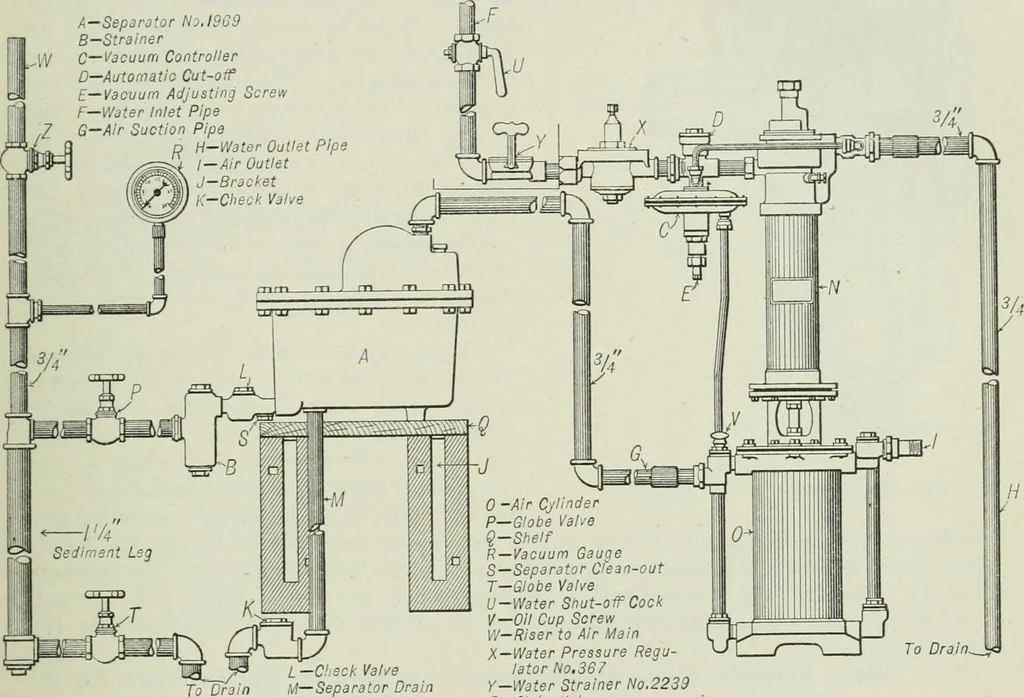

own below. The Vaciistat made by the Bishop-Babcock-Becker Co. is shown in section in Fig. 21 andits apphcation has been shown in Fig. 19. In operation air or steam enters at the inlet and passesdown through the strainer which is just under the removable cap and is of brass, silver plated.… … Dram L—Csck Valve:^—Separator DrainH—\1ofue Cylinder Y—Water Strainer No.2239Z-Globe Val/e Fig. 20. Bishop-Babcock-Becker Water-Driven Exhauster and Connections. Below this sti-ainer are the air or steam ports which discharge directly against the expansionchamber made of flexible brass and phosphor…
Building · Heating · Ventilation
