Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 216

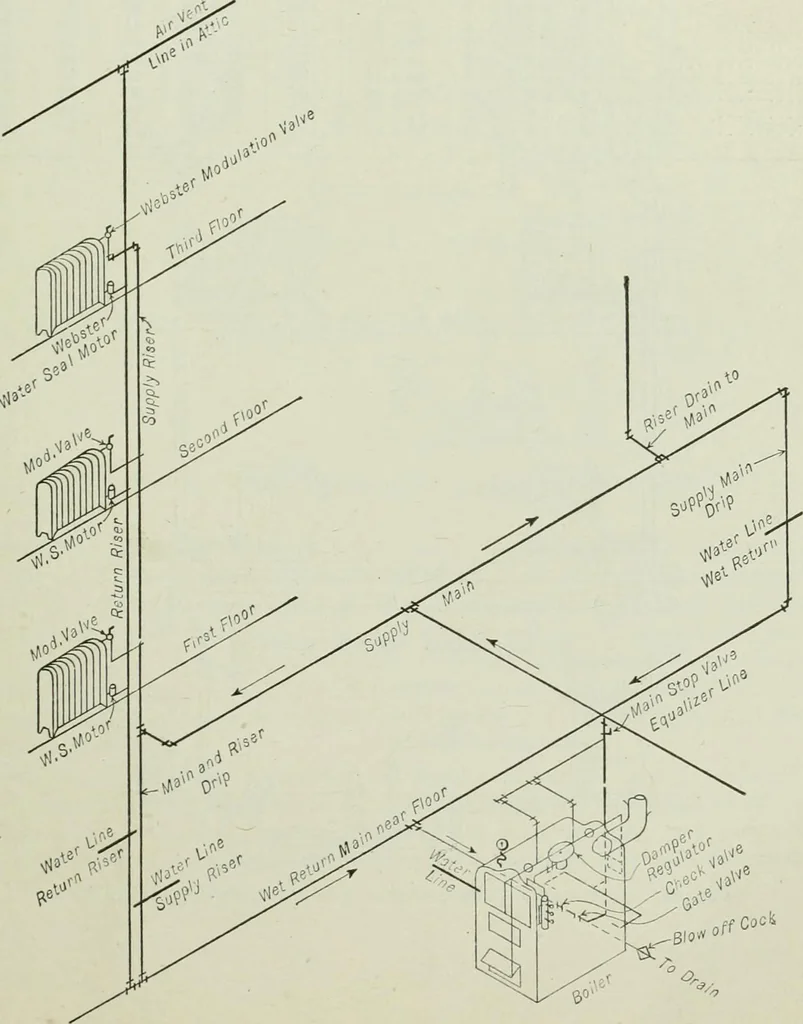

. 24. Notes. Fig. 25. Trane System: Air in this system driven out period- MoLlNE System: Essentially a two-pipe low pressure icaily by steam pressure through the mercury seal, steam system, two valves to each radiator. Live steamwhich will then maintain a vacuum as high as 24 of from supply mains… … Fig. 26 Typica.:, Piping Arraxgemext Web:5TEr Modulation Syste.m with Sealed Wet Reti i:x. 206 HEATING AND VENTILATION MECHANICAL STEAM HEATING SYSTEiMS The low pressure mechanical circulating systems, as already explained, depend on pumpsor traps for the return of water of condensation to the…
Building · Heating · Ventilation
