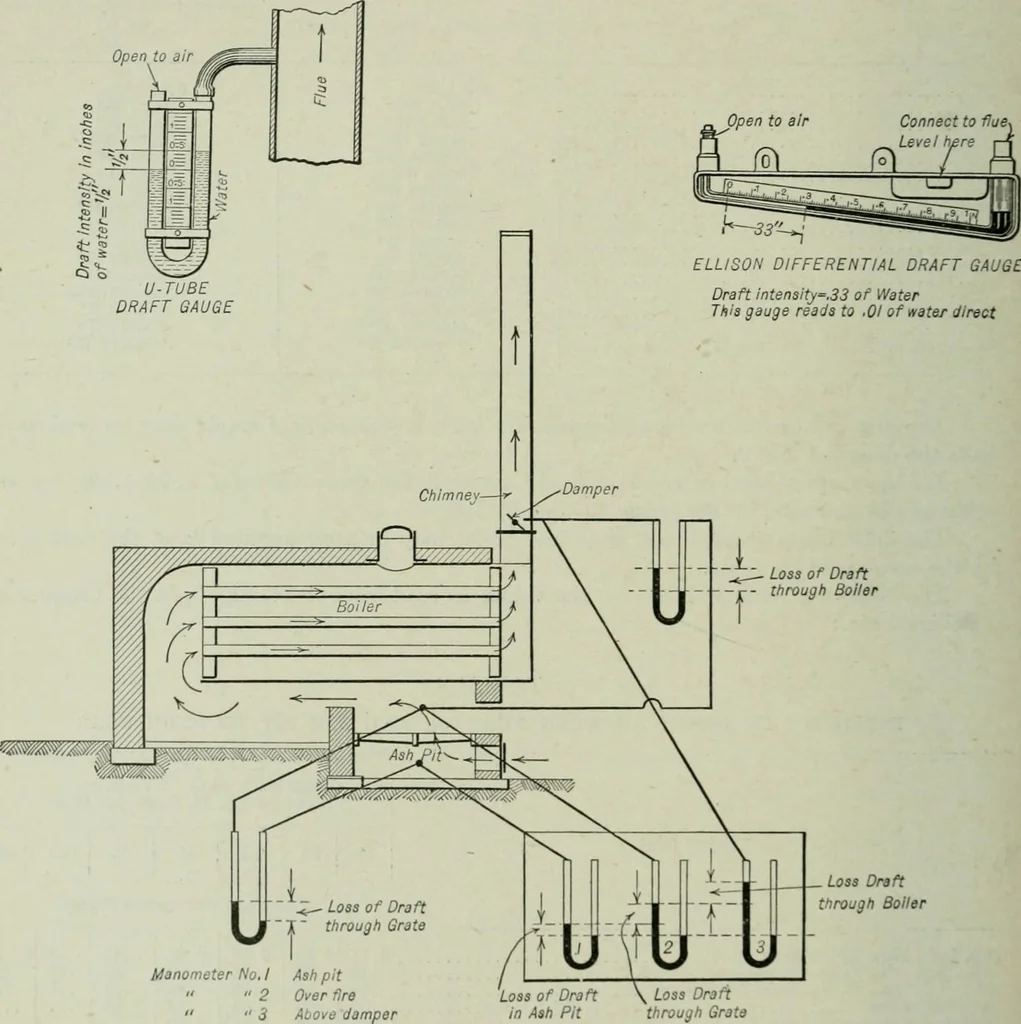

tirling Wickes vertical tubular. .Cahall vertical tubular. . Inches Water 0.25 to 0.30.20 to .35.49.51.43.45 The loss of draft between the grate or furnace and a point just beyond the damper box ofa boiler is about as follows when the boilers are operated at normal rating. Bituminous coalburned at… … I Manometer No. I2 3 Loss Draftthrough Grate FiQ. 3. Tllustratinq Dr.\ft Losses in a Boiler Plant. CHIMNEYS FOR POWER BOILERS 165 The loss of draft through the boiler wiU depend largely upon the method of baffling employedand increases with the per cent rating at which the boiler is operated. The…
