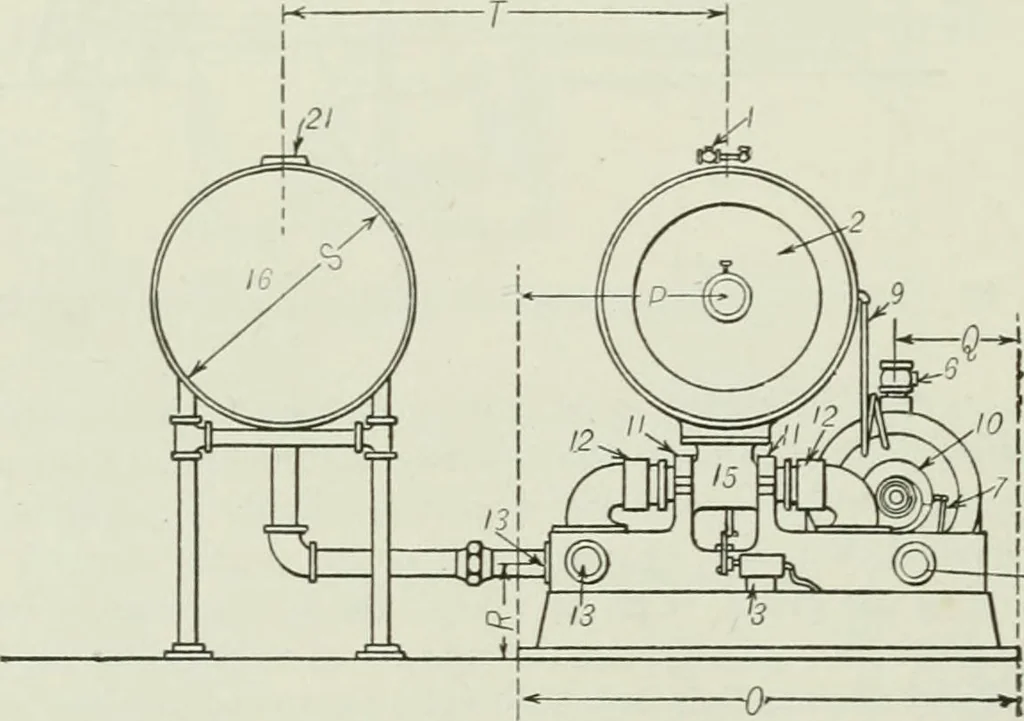

which may cause damageto motor and possibly result in its burning out. This pump also is fitted with receiving and settling chamber with plugged openings,for cleaning; and all parts of the pump are mounted on one iion base, connected up, adjustedand ready for piping and wiring connections. The… … 1. Air Cock and Relief Valve. 2. Counter Weight. 3. Automatic Boiler Feed Valve. 4. Flexible Coupling. 5. Connection to Automatic Switch. 6. Discharge of Pump. © K/4 Fig. 29. Pump Parts 7. Boiler Feed Regulating Valve. 8. Packing Glands. 9. Steam Tube. 10. Outboard Ring-oiled Bearing. 11. Babbitt…Building · Heating · Ventilation
