Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 410

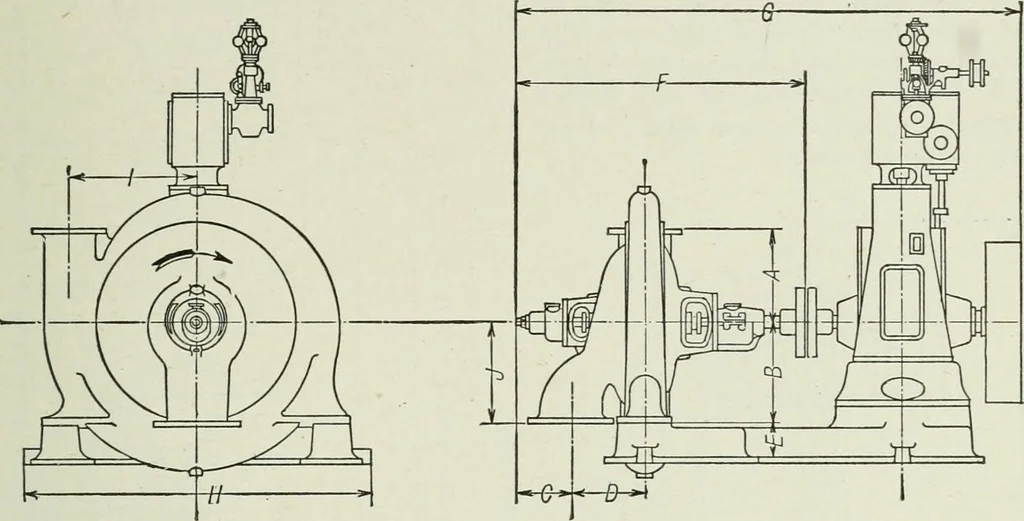

ally when there is pressure on the suction side of the pump, to placea gate valve in the suction pipe near the pump so the capacity of the pump can be controlledto some extent on the suction side. It is also advisable to place a strainer on the end of thesuction pipe to prevent large pieces of… … Fig. 33. Albebgeb Regular Volute Pumps.TABLE 22 Size Max.Capty Dimensions in Inches Sue. Dis. G. P. M. A B C D E F G H I J 6 5 700 15 16 J^ 9^ 9M 6J^ 43 78 46 19 M 16>^ 8 6 1,000 16 18 91^ 11 8 48 85 3^ 52 t^ 22 18M 10 8 1,800 18 20 ^% \w% 11 52 3i 98 63 253^ 201^ 12 10 2,800 21 22 nVi 16 H 9 63…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
