Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 224

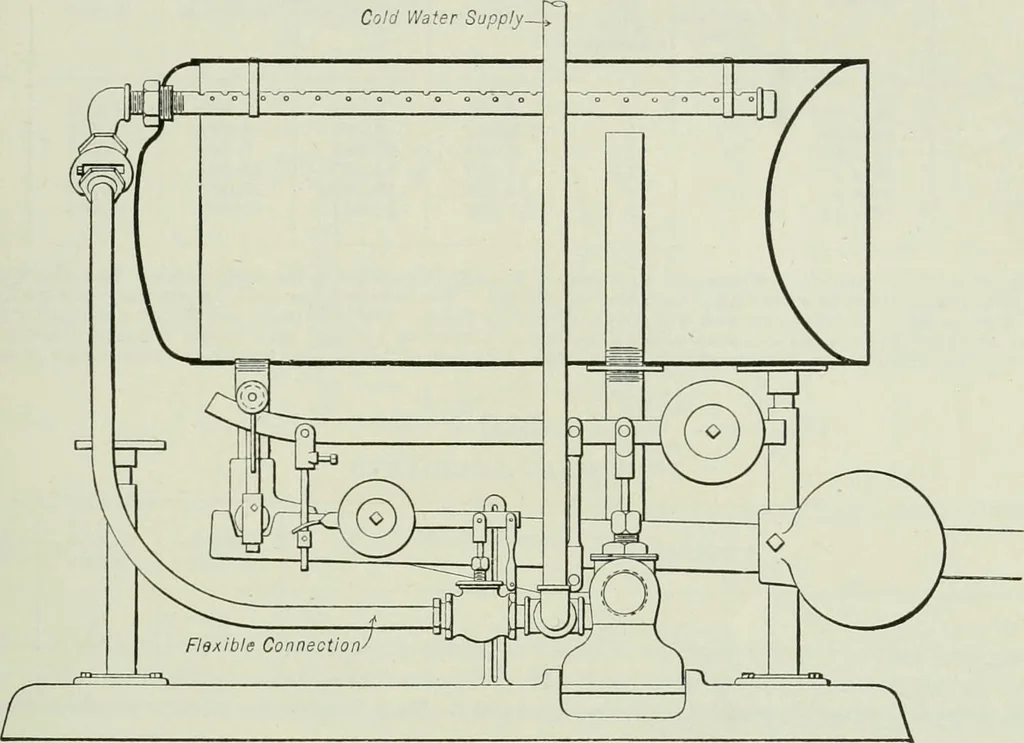

35. The tilting condenser trap (Fig. 36) is simply a modification of the return trap in which awater spray is connected into the tilting tank chamber to serve as a jet condenser. This spray DIRECT STEAM HEATING 213 is automatically supplied with water, just as the tank tilts back to its filling… … Fig. 36. Morehead Tilting Condenser Trap. tilts to admit live steam, this water is shut off and the discharge takes place under boiler pressure.All tanks are equipped with air valves. Capacities, pipe connections and weights of thesetraps are given in the tables following: TABLE 7 MOREHEAD TILTING…
Building · Heating · Ventilation
