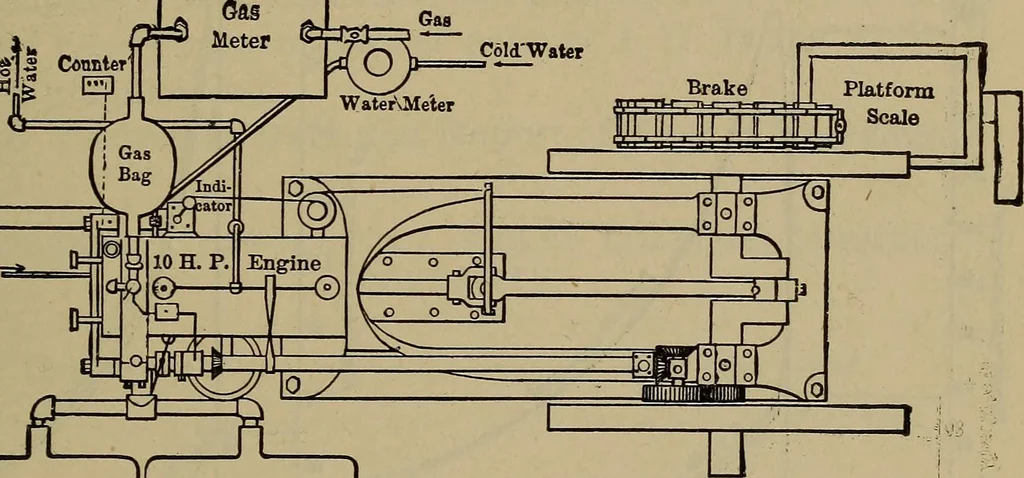

in as well as that of the gas. A completelog of a test is to be found in Engine and Boiler Trials, byThurston, which the student is advised to consult. In attaching the indicator it will be found necessary to usea heavy spring in order to resist the effect of the explosion.This spring, because of… … ,^Bag Air Bag fM Air Meter / W^^ Fig. 249.—Plan of Arrangement for Gas-engine Trial. for the piston so that the spring cannot be compressed to suchan extent as to injure it. A pyrometer should be inserted inthe exhaust, and a gas-bag placed between the gas-meter andthe engine. The proper…
