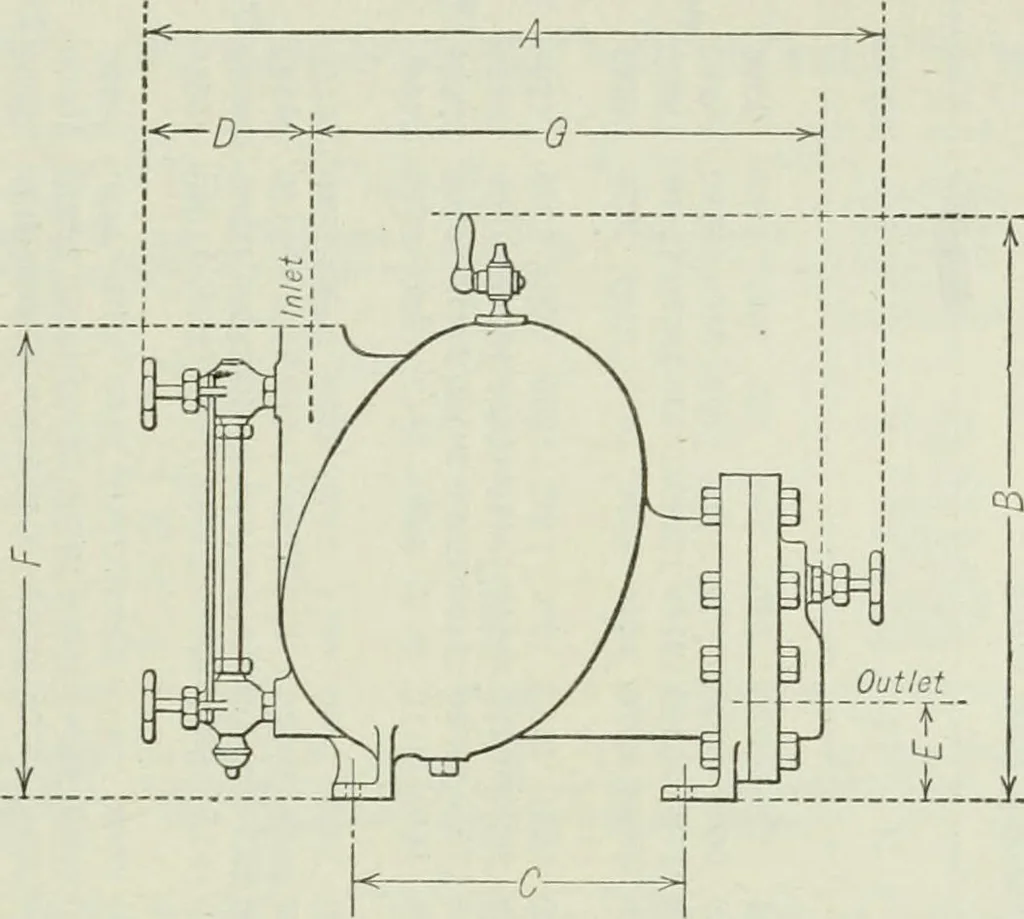

. American Ideal, Non-Return Trap for Low Pressures. A. Powerful valve mechanism. C. Valve stem. D. Valve seat. EE. By-pass valve and outlet. F. Bv-pass valve seat. G. Float.H. Air cock. J. Inlet.K. AVater gage. L. Sediment chamber.A/. Blow-ofif for sediment.N. Plug to valve seat. O. Outlet. DIRECT… … Fig. 38. American Ideal Stea.m Trap. American Steam Gage and Valve Mfg. Co. is shown in Fig. 37 and capacities at varying low pressuresfrom 1 to 30 lb. for all sizes are hsted in Table 11. The floats used are heavy, designed to operateon pressures from 1 to 125 pounds, and exert a powerful leverage…
