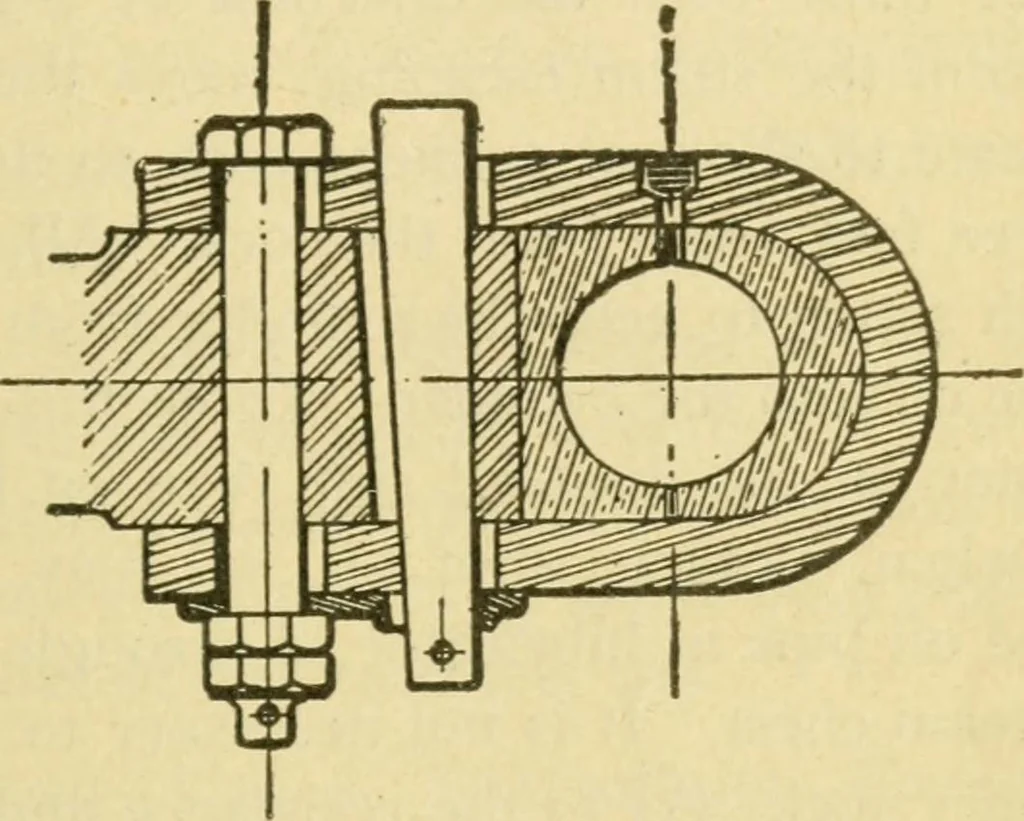

rod and the brass. The bolt is agood slip fit in the rod, but the bolt-hole in the strap isslotted and you have to loosen the bolt before you candrive the key. With this arrangement in keying thefront end of the rod it is shortened instead of lengthened. LOCOMOTIVE BREAKDOWN QUESTIONS 33 Observe… … Draw-Strap for Forward End of Main Rod. 46. Clamping Valve, with Main Rod and PistonWorking.—W^hen clamping a valve with one portslightly open to lubricate cylinder in case where the mainrod is left up and piston allowed to move in the cylinder,would you advise taking out cylinder cock in…
