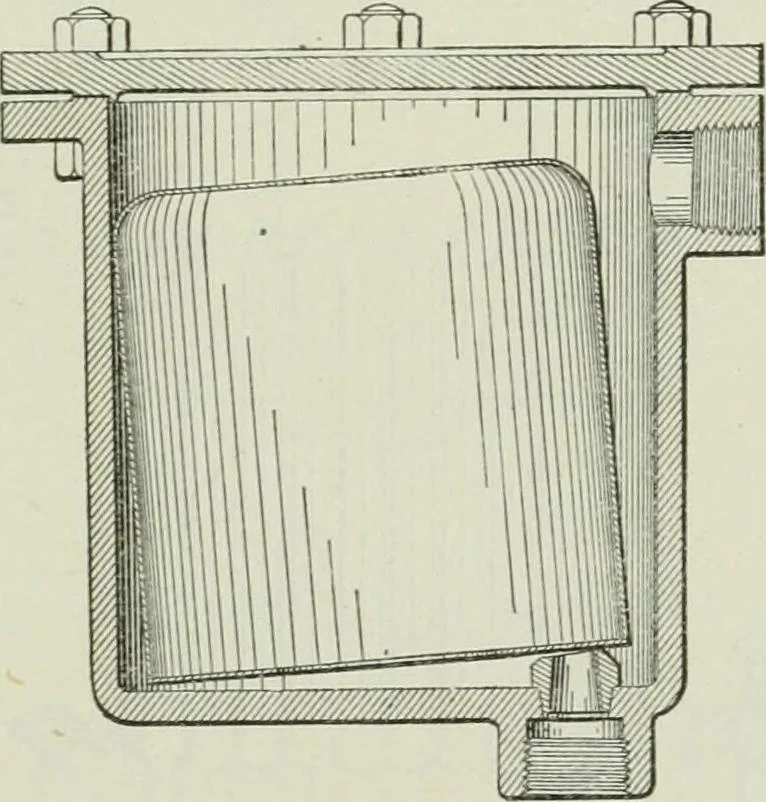

Fig. 41. Illinois Float Radiator Trap. a flat metal disc, which closes against a raised seat, is secured directly to the expansion bellows(Fig. 44). These smaller sizes are constructed of phosphor-bronze and made in four patterns—right hand, left hand, straight way, and angle. … Fig. 42. Illinois Float Blast Trap. TABLE 14CAPACITIES OF ILLINOIS FLOAT TRAPS Size Capacity—SquareFeet DirectRadiation Pipe Connections,Ins. Weight,Lb. Diameter of Port,In. 0 1 60 120 200 300 450 900 1700 2500 4500 Vi Vi or M Hor M % 1 IJiIH 2 3 5 10 10 25 45 80 135 Y 2 3 4 6 8 10 12 220 HEATING…
