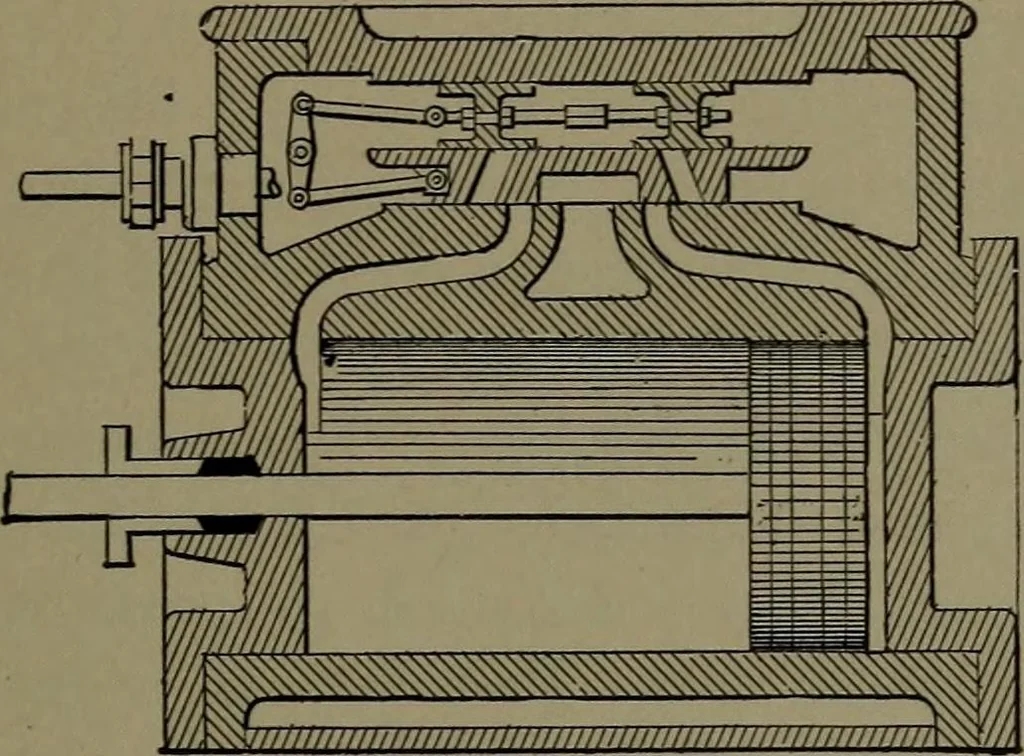

175. Shows connection, crank-pin arm to valve arm. from STEAM POWER APPLIANCES. 85 … 176. RIDING CUT-OFFVALVE. From single eccen-tric. The main valve is movedby the direct connected valverod. The riding valve is movedby a short lever and links piv-oted to the two valves.
