Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 243

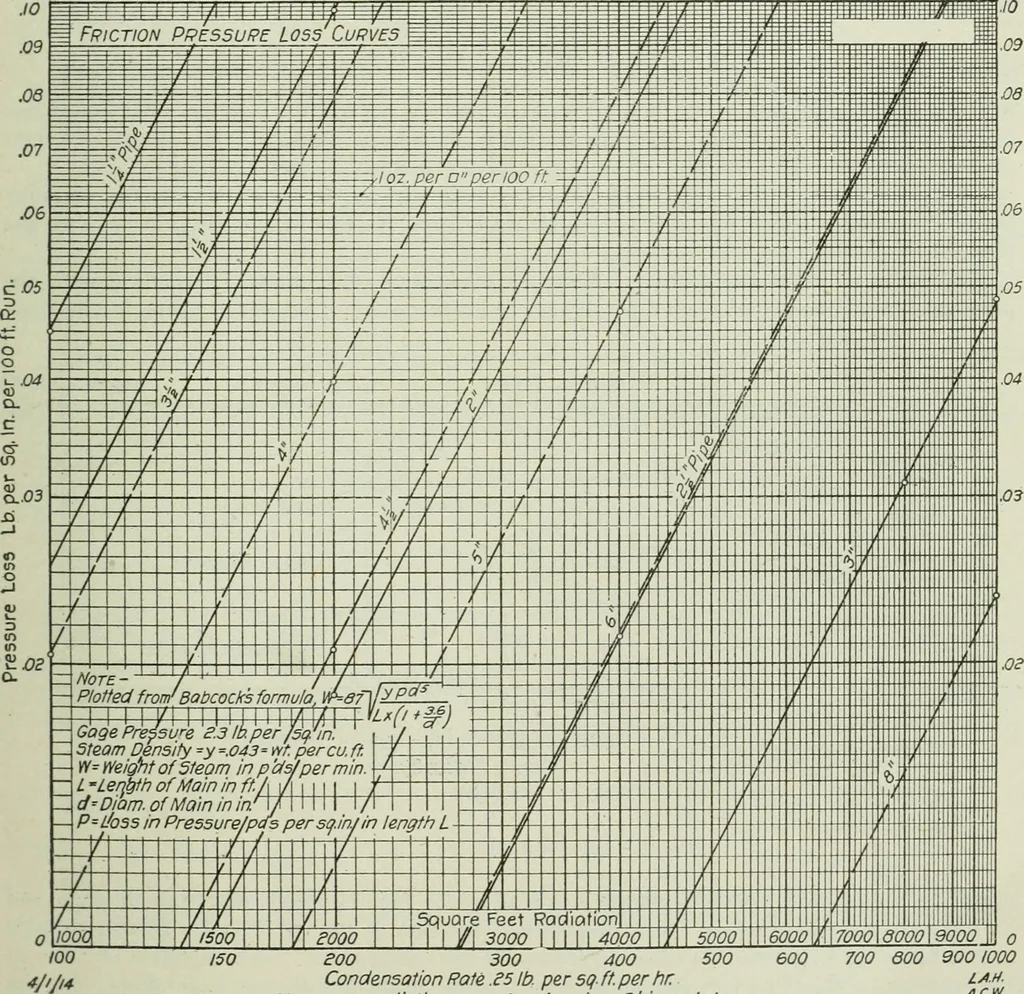

ctions for steam heating dependprimarily on the allowable friction pressure loss between the boiler and the last radiator in thesystem. In addition to this limitation the boiler outlets must be large enough so that the outletvelocity through same wiU not be sufficient to Uft water into the mains,… … eoO 300 400 500 Condensation Rate .85 lb. per sq- ft. per hrLJse upper radiation scale for pipe sizes JJ in and above Fig. 57. 700 600 900 1000LA.H./l.C.W. 230 HEATING AND VENTILATION Piping Sizes Based on Velocity. It would of course be possible to lay out a piping systemby assuming velocities,…
Building · Heating · Ventilation
