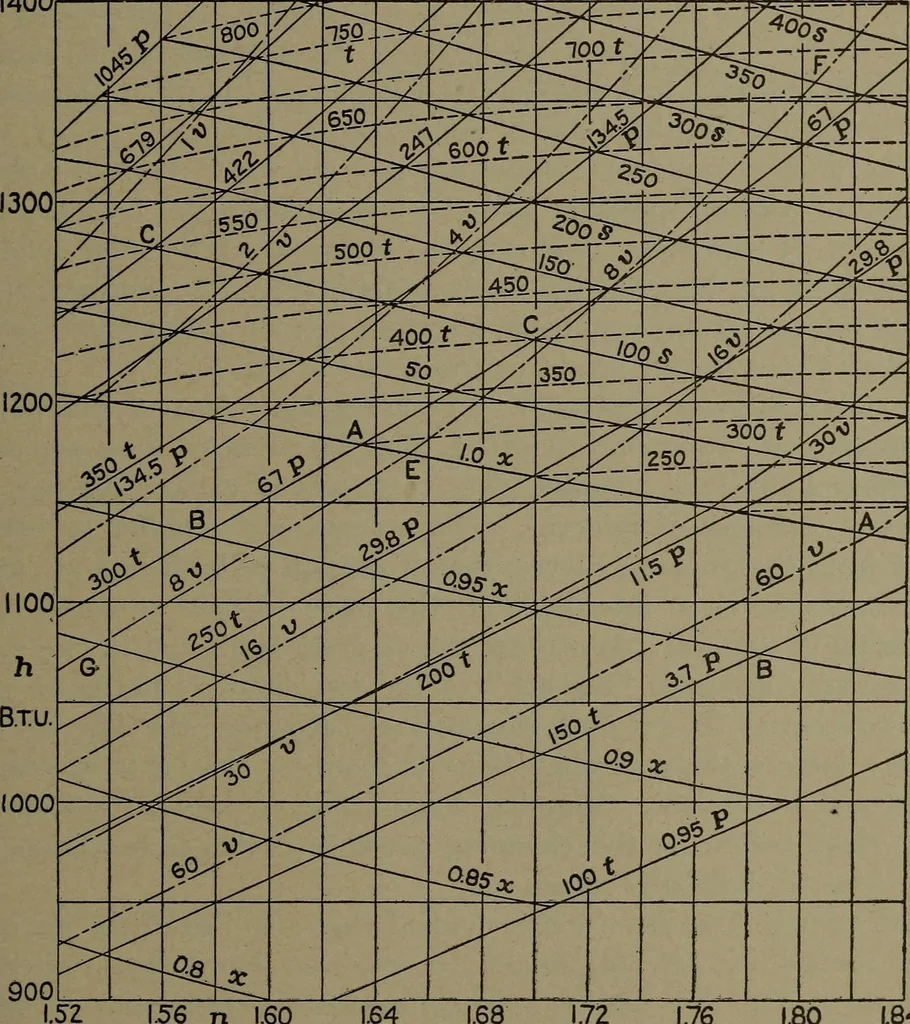

ig. 72 is intended simply to illus-trate this scheme; in a service diagram, a great many more of each § 18 (&)] SPECIAL GRAPHICAL METHODS. 139 kind of line would have to be drawn. With the entropy in constant-pressure heating from 32 deg. fahr. as base, and with the correspondingtotal heat h as… … 1.56 n 1-60 1.64 1.68 1.72 1.76 Fig. 72. — Outline of the Mollier Diagram. f.80 1.84 Table II. Below this, or in the region of wet steam, the lines ofconstant pressure and of constant temperature are identical, and theyare straight lines because total heat and entropy vary together inconstant ratio…
