Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 591

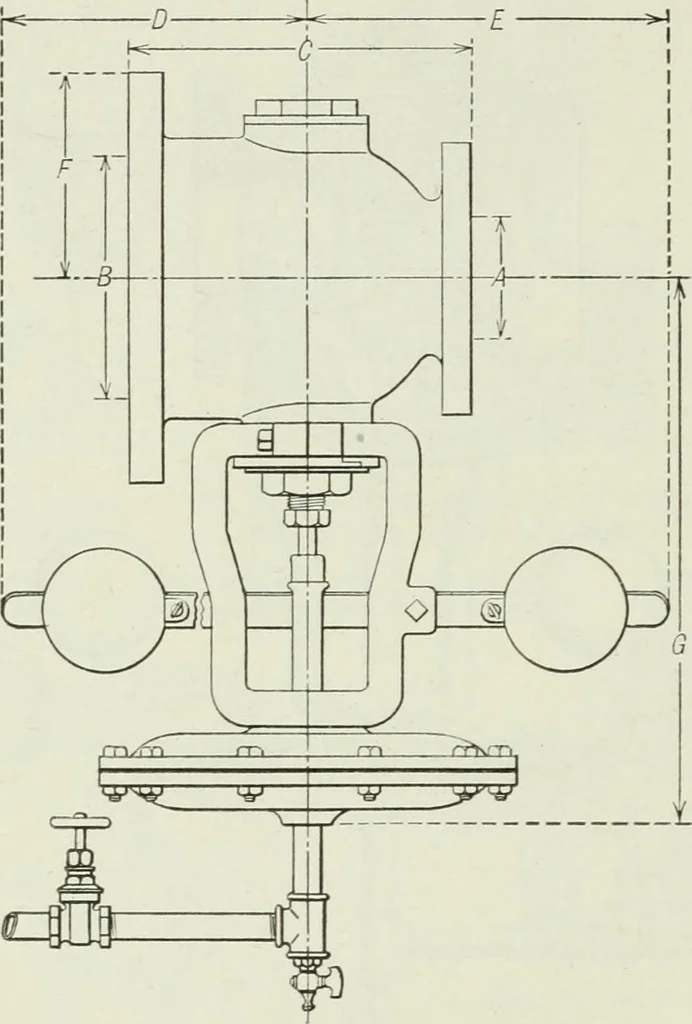

the diaphragm attached to the bot-tom of the valve spindle. Connection to this chamber is made by the small pipe shown at thebottom of the figure. This connection must be made to the low pressure main at least 15 ft.from the valve if steady operation is to be secured. By proper adjustment of the… … TABLE 24MONASH CLASS C-1 PRESSURE REGULATING VALVES ALL DIMENSIONS GIVEN IN INCHES lKx2H 1^x3 2x4 2Hx5 3x6 3J^x7 4x6 4x8 5x10 6x12 8x14 8x16 A 1J4 IH 2 2H 3 3H 4 4 5 6 8 8 B 2^ 3 4 5 6 7 6 8 10 12 14 16 C ,r^ 7i 8V,6 9 10 M lOH 10Vl6 11?-^ n^A 15 17»/l6 175^ D 12 H 12 H 13 41 1637.6 15 H 17 18/,6…
Building · Heating · Ventilation
